CA-12S2N129007

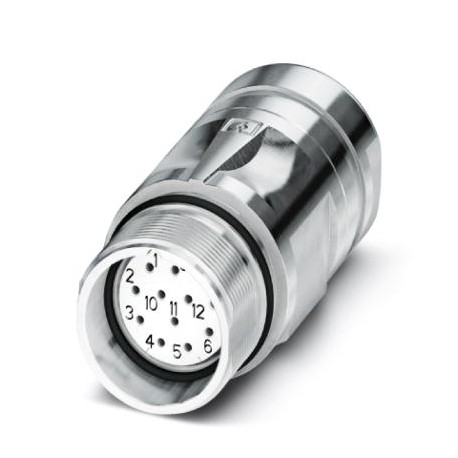

CA-12S2N129007 1622220 PHOENIX CONTACT Coupler connector
$0.00USD
3065 in stock
Key Specifications
GTIN:4055626022468
Orderkey:1622220
Packing unit:1
(Cable seal data):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626022468 |
| Orderkey | 1622220 |
| Packing unit | 1 |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| Coding (Key Commercial Data) | N |
| Cable diameter (Housing data) | 6 mm ... 10 mm |
| Sealing material (Housing data) | NBR |
| Application (Key Commercial Data) | Signal |
| Contact material (Key Commercial Data) | CuZn |
| Type of contacts (Key Commercial Data) | Socket |
| Insulator material (Key Commercial Data) | PBT |
| Degree of pollution (Key Commercial Data) | 3 |
| Number of positions (Key Commercial Data) | 12 |
| Rated surge voltage (Key Commercial Data) | 1.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Overvoltage category (Key Commercial Data) | II |
| Type of locking (Data of the insulating body) | for standard and SPEEDCON interlock |
| Contact surface material (Key Commercial Data) | Ni/Au |
| Housing material (Data of the insulating body) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Contact connection method (Key Commercial Data) | Solder connection |
| Nominal voltage, power contact (Key Commercial Data) | 150 V |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 100 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
| Litz wire cross section of power contacts max. (Key Commercial Data) | 1 mm² |
| Litz wire cross section of power contacts min. (Key Commercial Data) | 0.08 mm² |
Product Description
Plug-in coupling connector, AC, straight, shielded: yes, for standard lock and SPEEDCON, M23, No. of poles: 12, contact type: Female, Soldered connection, cable diameter range: 6 mm ... 10 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
