CA-12S1N128008S

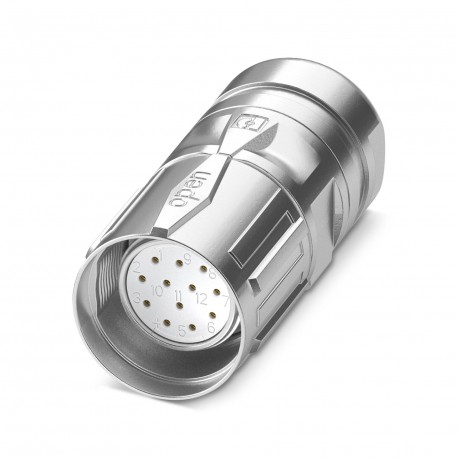

CA-12S1N128008S 1619496 PHOENIX CONTACT Cable connector
$0.00USD
4667 in stock
Key Specifications
:74 V DC
Coding:N
Application:Signal
Head design:Socket
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 74 V DC | |
| Coding | N |
| Application | Signal |
| Head design | Socket |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 48 V AC |
| Seal material | NBR |
| Type of locking | SPEEDCON |
| Article revision | 08 |
| Contact material | CuZn |
| Housing material | CuZN, GD-Zn |
| Connection method | Solder connection |
| Connection profile | 12 |
| Degree of pollution | 3 |
| Number of positions | 12 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Socket |
| External cable diameter | 10 mm ... 14.5 mm |
| Contact surface material | Ni/Au |
| Insulation body material | PBT |
| Insertion/withdrawal cycles | 100 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Contact diameterSignal contacts | 1 mm |
| Degree of protection (plugged in) | IP67 |
| Nominal current per signal contact | 8 A |
| Litz wire cross-sectionSignal contactsmax. | 1 mm² |
Product Description
M23, Plug connector. for cables, AC, straight, shielded: yes, SPEEDCON lock, No. of poles: 12, Direction of rotation: Standard, contact type: Female, Solder connection, cable diameter range: 10 mm ...
