CA-12P2N8A8006

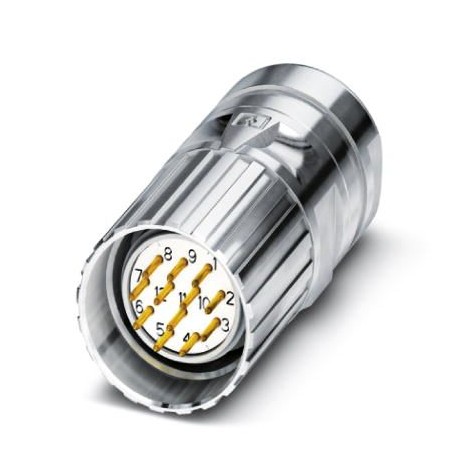

CA-12P2N8A8006 1623446 PHOENIX CONTACT Cable connector
$0.00USD
4216 in stock
Key Specifications
GTIN:4055626149530
Orderkey:1623446
Packing unit:1
(Cable seal data):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626149530 |
| Orderkey | 1623446 |
| Packing unit | 1 |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| Note (Temperature range) | Order information: Order crimp contacts Ø 1 mm separately |
| Coding (Temperature range) | N |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Cable seal data) | Lead 7439-92-1 |
| Cable diameter (Housing data) | 4 mm ... 6 mm |
| Application (Temperature range) | Signal |
| Sealing material (Housing data) | NBR |
| Type of contacts (Temperature range) | Pin |
| Insulator material (Temperature range) | PA 6.6 |
| Degree of pollution (Temperature range) | 3 |
| Number of positions (Temperature range) | 12 |
| Rated surge voltage (Temperature range) | 1.5 kV |
| Overvoltage category (Temperature range) | II |
| Thread type (Data of the insulating body) | M23 |
| Contact connection method (Temperature range) | Crimp connection |
| Type of locking (Data of the insulating body) | Screw locking |
| Housing material (Data of the insulating body) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Nominal voltage, power contact (Temperature range) | 150 V |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 125 °C |
| Contact diameter of power contacts (Temperature range) | 1 mm |
| Nominal current per power contact at 25°C (Temperature range) | 8 A |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
