CA-12F2N8A95DU

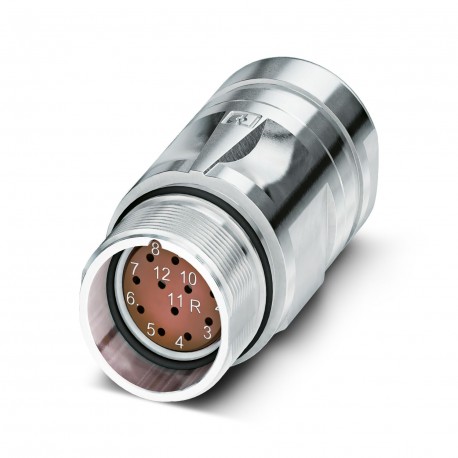

CA-12F2N8A95DU 1620018 PHOENIX CONTACT Coupler connector
$0.00USD
3428 in stock
Key Specifications
:Signal
Note:Order information: Order crimp contacts Ø 1 mm separately
Coding:N
Application:Feedback, signal
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Signal | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Application | Feedback, signal |
| Head design | Socket |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Seal material | FPM |
| Type of locking | for standard and SPEEDCON interlock |
| Article revision | 06 |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Connection method | Crimp connection |
| Connection profile | 12 |
| Order information: | Order crimp contacts Ø 1 mm separately |
| Degree of pollution | 3 |
| Number of positions | 12 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Counter direction |
| Contact switching type | Socket |
| External cable diameter | 3 mm ... 14.5 mm |
| Insulation body material | PA 6.6 |
| Rated voltage Signal contact | 48 V AC |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Contact diameterSignal contacts | 1 mm |
| Degree of protection (plugged in) | IP67 |
| Nominal current per signal contact | 8 A |
| Litz wire cross-sectionSignal contactsmax. | 1 mm² |
| Litz wire cross-sectionSignal contactsmin. | 0.06 mm² |
Product Description
M23, Plug-in coupling connector, AC, straight, shielded: yes, for standard and SPEEDCON locking, No. of poles: 12, Direction of rotation: Opposite movement, type of contact: Female, Crimped connection
