CA-07P1N8A80DNS

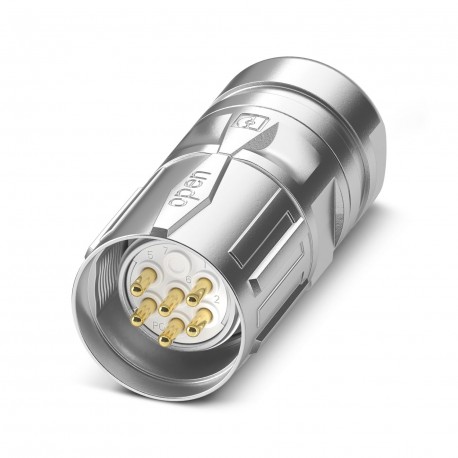

CA-07P1N8A80DNS 1619598 PHOENIX CONTACT Cable connector
$0.00USD
3953 in stock
Key Specifications
Note:Order information: Order 7 x Ø 2 mm crimp contacts separately
Coding:N
Application:Signal
Thread type:M23
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | Order information: Order 7 x Ø 2 mm crimp contacts separately |
| Coding | N |
| Application | Signal |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Seal material | NBR |
| Type of locking | SPEEDCON |
| Article revision | 07 |
| Housing material | CuZN, GD-Zn |
| Connection method | Crimp connection |
| Connection profile | 7 |
| Order information: | Order crimp contacts 6 x Ø 2 mm separately |
| Degree of pollution | 3 |
| Number of positions | 7 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Pin |
| External cable diameter | 3 mm ... 14.5 mm |
| Insulation body material | PA 6.6 |
| Rated voltage Signal contact | 48 V AC |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Contact diameterSignal contacts | 2 mm |
| Degree of protection (plugged in) | IP67 |
| Nominal current per signal contact | 20 A |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
| Litz wire cross-sectionSignal contactsmax. | 2.5 mm² |
| Litz wire cross-sectionSignal contactsmin. | 1 mm² |
Product Description
M23, Cable connector, AC, straight, shielded: yes, SPEEDCON, No. of poles: 7, Direction of rotation: Standard, contact type: Male, Crimped connection, cable diameter range: 3 mm ... 14.5 mm, coding:N,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
