CA-06S1N8A8007SX

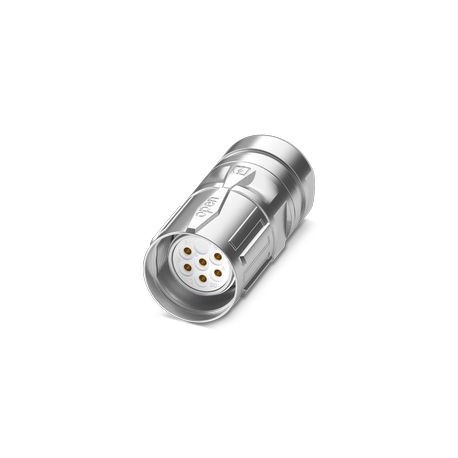

CA-06S1N8A8007SX 1243642 PHOENIX CONTACT M23, Cable connector, series: AC, straight, shielded: yes, SPEEDCON..
$0.00USD
4499 in stock
Key Specifications
Note:Order information: Order crimp contacts Ø 2 mm separately
Coding:N
General:Order crimp contacts 6 x Ø 2 mm separately
Application:Signal
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | Order information: Order crimp contacts Ø 2 mm separately |
| Coding | N |
| General | Order crimp contacts 6 x Ø 2 mm separately |
| Application | Signal |
| Head design | Socket |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Seal material | NBR |
| Type of locking | SPEEDCON |
| Housing material | CuZN, GD-Zn |
| Connection method | Crimp connection |
| Connection profile | 6 |
| Degree of pollution | 3 |
| Number of positions | 6 |
| Pg screw connection | none |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Socket |
| External cable diameter | 6 mm ... 10 mm |
| Insulation body material | PA 6.6 |
| Rated voltage Signal contact | 48 V AC |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Contact diameterSignal contacts | 2 mm |
| Degree of protection (plugged in) | IP67 |
| Nominal current per signal contact | 20 A |
| Litz wire cross-sectionSignal contactsmax. | 2.5 mm² |
| Litz wire cross-sectionSignal contactsmin. | 1 mm² |
Product Description
Plug-in connector. for cables
