C18P/BP-2A

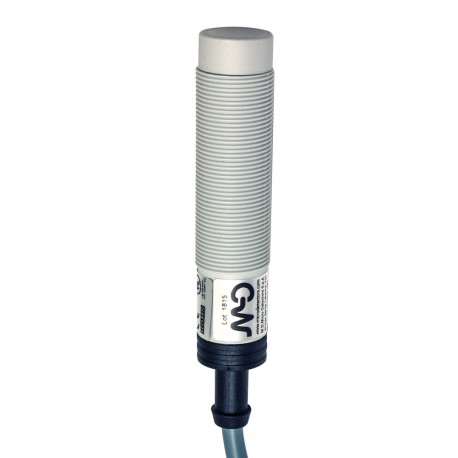

C18P/BP-2A MICRO DETECTORS Capacitive sensor M18 Plastic Unshielded DC 12mm PNP NO+NC cable 2m axial
$0.00USD
4623 in stock
Key Specifications
Weight:150g
Mounting:Unshielded
Approvals:CEcULus
Dimensions:M18 x 1 / L = 99mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 150g |
| Mounting | Unshielded |
| Approvals | CEcULus |
| Dimensions | M18 x 1 / L = 99mm |
| Hysteresis | ≤ 20% |
| Connections | 2m PVC cable |
| Output type | PNP |
| Load current | ≤ 200mA |
| LED indicators | Yellow LED (object detected) |
| Leakage current | ≤ 100μA |
| Output Function | NO + NC |
| Repeat Accuracy | 5% |
| Housing Material | thermoplastic polyester |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 40Vdc |
| Tightening torque | 2,6Nm |
| Max ripple content | ≤10% |
| Output voltage drop | ≤ 2,5V @ IL = 200mA |
| Storage temperature | -40°C…+85°C |
| Switching frequency | 50Hz |
| Thermal drift of Sr | < 20% |
| Active Head Material | thermoplastic polyester |
| Degree of protection | IP 67 - IP68 (60min) - IP69K - NEMA 1, 2, 4, 4x, 5, 6, 6p, 12 |
| Supplied Accessories | screw driver, 2 x M18 nuts |
| Operating temperature | -35°C…+85°C (without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤12mA |
| Sensitivity adjustment | Yes |
| Nominal sensing distance | 3…12mm |
| Short-circuit protection | polarity reversal, overvoltage |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤ 200ms |
| Impulsive Overvoltage Protection | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
