C12P/00-3A

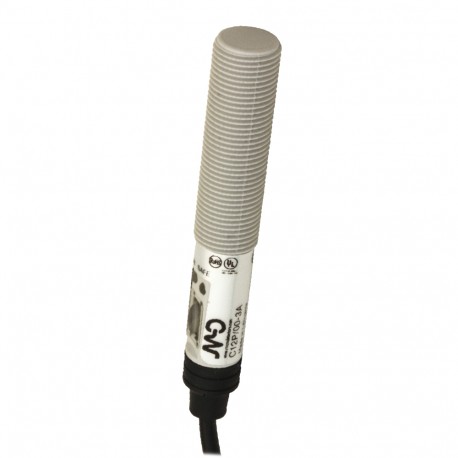

C12P/00-3A MICRO DETECTORS Capacitive sensor M12 Plastic Shielded DC 8mm PNP/NPN NO/NC cable 2m axial
$0.00USD
3575 in stock
Key Specifications
Weight:110g
Mounting:Shielded/Unshielded
Approvals:CEcULus
Dimensions:M12 x 1 / L = 78mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 110g |
| Mounting | Shielded/Unshielded |
| Approvals | CEcULus |
| Dimensions | M12 x 1 / L = 78mm |
| Hysteresis | ≤ 20% |
| Connections | 2m PVC cable |
| Output type | PNP + NPN |
| Load current | ≤ 200mA |
| LED indicators | Yellow LED (object detected), green LED power supply/stability |
| Leakage current | ≤ 300μA |
| Output Function | NO + NC |
| Repeat Accuracy | 5% |
| Housing Material | thermoplastic polyester |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 40Vdc |
| Max ripple content | ≤10% |
| Output voltage drop | ≤ 2,5V @ IL = 200mA |
| Storage temperature | -40°C…+85°C |
| Switching frequency | ≤15Hz |
| Thermal drift of Sr | < 20% |
| Active Head Material | thermoplastic polyester |
| Degree of protection | IP 67 (IEC 60529) NEMA 1,3,4,6,13 |
| Supplied Accessories | 2 x M12 nuts |
| Operating temperature | -35°C…+85°C (without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤12mA |
| Sensitivity adjustment | Yes - auto teach |
| Nominal sensing distance | 0,5…4mm shielded; 0,5…8mm unshielded |
| Short-circuit protection | polarity reversal, overvoltage |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤ 200ms |
| Impulsive Overvoltage Protection | Yes |
