C1 S6 A 382X458X210

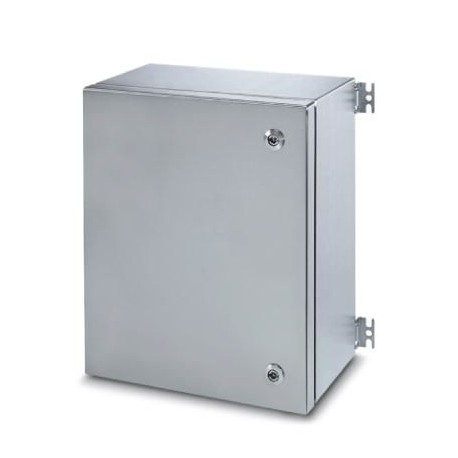

C1 S6 A 382X458X210 0899097 PHOENIX CONTACT Junction box
$0.00USD
4810 in stock
Key Specifications
GTIN:4046356928595
Note:Made to Order (non-returnable)
Orderkey:0899097
Catalog page:Page 531 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356928595 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0899097 |
| Catalog page | Page 531 (C-3-2017) |
| Packing unit | 1 pc |
| Depth (General) | 210 mm |
| Width (General) | 382 mm |
| Height (General) | 458 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 94032080 |
| (Key Commercial Data) | Flange plates |
| Fixing device (Dimensions) | External fixing clips |
| Protection class (General) | I |
| Seal material (Dimensions) | Silicon |
| Color (Key Commercial Data) | silver |
| Cover fastening (Dimensions) | Door with replaceable hinge |
| Housing material (Dimensions) | Stainless steel, 316L/1.4404 |
| Max. material thickness (General) | 1.5 mm |
| Degree of protection (IK) (General) | 7.00 J |
| Surface characteristics (Dimensions) | brushed |
| Weight per Piece (excluding packing) | 11,270.000 g |
| Scope of supply (Key Commercial Data) | Door hinge with quarter turn locking |
| Temperature in operating conditions (General) | -55 °C ... 135 °C |
| Degree of protection of housing (IP) (General) | IP66 |
| Clearance width, maximum DIN rail length (General) | 652 mm |
Product Description
Terminal box, equipped with flange plates below, material: Sterling steel 316L / 1.4404, surface resistance: brushed, silver, 382 mm x 458 mm x 210 mm, type of closure: Door with changeable hinge, sco
