BY120CS

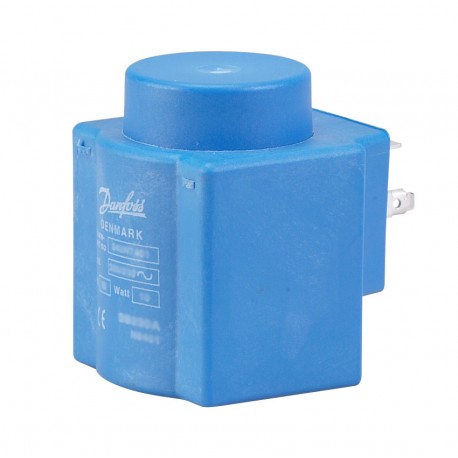

BY120CS 018F7663 DANFOSS CONTROLES INDUSTRIALES COIL RC 110V50/60Hz 120V60Hz 14W + pack
$45.75USD
258 in stock
Key Specifications
EAN ():5702428041270
Type ():BY120CS
Colour ():Blue
Volume ():0.272 Liter
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428041270 |
| Type () | BY120CS |
| Colour () | Blue |
| Volume () | 0.272 Liter |
| Approval () | cURusCEEACLLC CDC TYSKUKCA |
| Compliance () | EN 60730-1UL 429 |
| Net weight () | 0.28 Kg |
| Serviceable () | No |
| Gross weight () | 0.292 Kg |
| Actuator size () | 13.5 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Clip-on |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Coil connection () | DIN Spade |
| SCIP dossier no. () | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Type designation () | BY120CS |
| Spare part number () | 018F7663 |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV250BEV251B |
| Enclosure rating IP () | IP00 |
| Product accessories () | Solenoid coil accessories |
| Coil design standard () | VDE 0580 |
| Electrical connector () | 3 x spades |
| Electrical connection () | DIN Spade |
| Supply voltage [V] AC () | 110 V |
| UL approval file name () | MH29671 |
| Product Name Description () | Solenoid coil |
| Rel. Humidity conditions () | Non-condensation |
| SCIP dossier product name () | Solenoid coils |
| Electrical connection size () | 6.3 mm x 0.8 mm |
| Power consumption [W] 50Hz () | 14 W |
| Power consumption [W] 60Hz () | 14 W |
| Rel. Humidity [% RH] [max] () | 97 % |
| Rel. Humidity [% RH] [min] () | 0 % |
| Power consumption 50Hz [VA] () | 27 VA |
| Power consumption 60Hz [VA] () | 27 VA |
| Quantity per packing format () | 50 pc |
| Supply voltage 50Hz Max [V] () | 110 V |
| Supply voltage 60Hz Max [V] () | 120 V |
| Supply voltage 60Hz Min [V] () | 110 V |
| Coil winding insulation class () | Class H to IEC 85 |
| Electrical connection standard () | EN175301-803 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 122 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, BY120CS, DIN Spade, Supply voltage [V] AC: 110, Multi pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: DIN Spade, Supply voltage [V] AC: 110, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
