In Stock Hot Product
BX80B/1P-1H6X

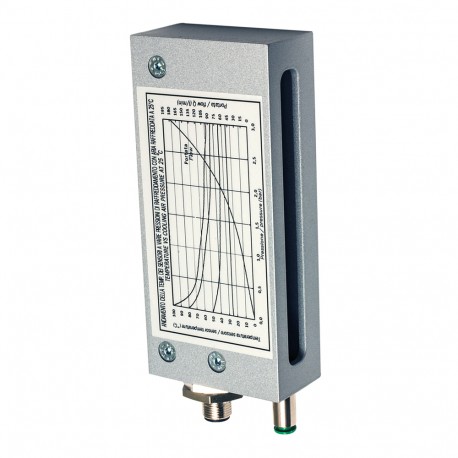

BX80B/1P-1H6X MICRO DETECTORS Area sensor Receiver crossed beam 2m 10ms PNP NO/NC M12 4 pin with aluminium e..
$0.00USD
3998 in stock
Key Specifications
Weight:260 … 300g
Emission:Infrared (880 nm)
Approvals:CE
Dimensions:60mm x 132mm x 30mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 260 … 300g |
| Emission | Infrared (880 nm) |
| Approvals | CE |
| Dimensions | 60mm x 132mm x 30mm |
| Beams space | 6mm |
| Connections | M12 male connector |
| Output type | PNP |
| Load current | ≤100mA |
| LED indicators | green (supply), red (alignment), yellow (output state) |
| number of rays | 12 |
| Leakage current | 10µA |
| Output Function | NO/NC selectable |
| Housing Material | PBT |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 12-24Vcc |
| Tightening torque | 25Nm |
| controlled height | 70mm |
| Function Principle | Receiver |
| Max ripple content | ≤ 10% |
| Output voltage drop | ≤1.2V IL =100 mA |
| Storage temperature | -40°C…+80°C |
| Thermal drift of Sr | ≤10% |
| Active Head Material | PC |
| Degree of protection | IP67 |
| Operating temperature | -25°C…+50°C (without freeze) |
| Shocks and vibrations | IEC EN 60947-5-2 |
| No-Load supply current | 50mA |
| Nominal sensing distance | 300mm … 2,5m |
| Short-circuit protection | Yes (auto reset) |
| minimum detectable object | Ø5mm |
| Reverse Polarity Protection | Yes |
| Interference to external light | 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight) |
| Time delay before availability | 500ms |
| Impulsive Overvoltage Protection | Yes |
Product Description
BX80B/1P-1H6X Area sensor Receiver crossed beam 2m 10ms PNP NO/NC M12 4 pin with aluminium enclosureSn = 2,5 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
