BX04SR/XA-AB

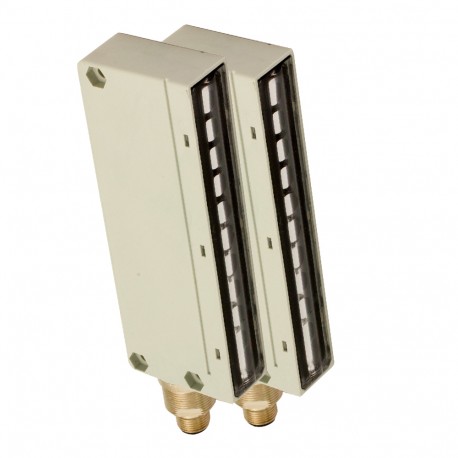

BX04SR/XA-AB MICRO DETECTORS Area sensor Kit 4 beams, with adjustment, CK. P+N DO cable 2m
$0.00USD
3799 in stock
Key Specifications
Weight:300g
Emission:Infrared
Dimensions:45mm x 145mm x 20mm
Connections:Output cable
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 300g |
| Emission | Infrared |
| Dimensions | 45mm x 145mm x 20mm |
| Connections | Output cable |
| Load current | ≤100mA |
| Nominal range | 0,3 ... 2 m |
| Thermal drift | ≤10% |
| body material | PBT |
| Certifications | EC |
| LED indicators | Green |
| Supply voltage | 10-26Vcc |
| Leakage current | 10µA |
| Number of beams | Four |
| Protected height | 90mm |
| Tightening torque | 25Nm |
| Accessories included | 4 nut M18x1 - 1 adjustment key - 2 brackets 90° |
| Degree of protection | IP67 |
| Operating temperature | 0°C...+ 50° C (non-condensing) |
| Distance between beams | 30mm |
| Principle of operation | Transmitter with control |
| Sensitivity adjustment | Potentiometer |
| Maximum residual ripple | ≤ 10% |
| Protection short circuit | automatic restart |
| Delay to the availability | EC |
| Immunity to ambient light | 1000lux (incandescent lamp), 1500lux (sunlight) |
| Voltage drop to the output | ≤2V IL =100 mA |
| Protection polarity reversal | Yes |
| Electromagnetic compatibility | According to en 60947-5-2 |
| Absorption of current in the vacuum | 50mA |
| Protection against impulse overvoltage | Yes |
Product Description
BX04SR/XA-AB Area sensor Kit 4 beamsadj.CK. P+N DO cable 2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
