BWP 2102W

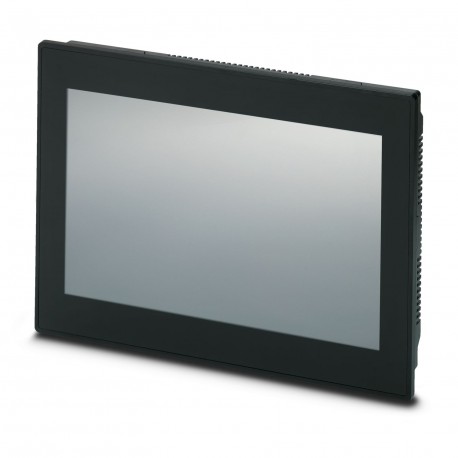

BWP 2102W 1060630 PHOENIX CONTACT Touch panel with 25.9 cm / 10.2" TFT-display (analog resistive (polyester)..
$0.00USD
4892 in stock
Key Specifications
GTIN:4055626711645
Orderkey:1060630
Catalog page:Page 468 (C-6-2019)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626711645 |
| Orderkey | 1060630 |
| Catalog page | Page 468 (C-6-2019) |
| Packing unit | 1 pc |
| RAM (Display) | 1 GB DDR2 |
| Shock (General) | DIN EN 60068-2-27 |
| Country of origin | IN (India) |
| ETIM 4.0 (eCl@ss) | EC001412 |
| ETIM 5.0 (eCl@ss) | EC001412 |
| ETIM 6.0 (eCl@ss) | EC001412 |
| ETIM 7.0 (eCl@ss) | EC001412 |
| Network (Display) | 1 x Ethernet (10/100 Mbps), RJ45 |
| Colors (Dimensions) | 16.7 million colors |
| Processor (Display) | Arm®Cortex®-A9, 1 GHz |
| Bus system (Display) | without |
| Custom tariff number | 84715000 |
| Display (Dimensions) | 25.9 cm / 10.2" TFT |
| Interfaces (Display) | 1x USB Host 2.0 |
| Shock (Device supply) | DIN EN 60068-2-27 |
| Mass storage (Display) | Flash eMMC, 4 GB |
| Weight (Computer data) | 900 g |
| Brightness (Dimensions) | 350 cd/m² |
| User software (Display) | Otter Browser |
| Backlighting (Dimensions) | LED |
| Operating system (Display) | Yocto/Linux |
| eCl@ss 5.1 (Classifications) | 27330200 |
| eCl@ss 6.0 (Classifications) | 27242300 |
| eCl@ss 7.0 (Classifications) | 27242302 |
| eCl@ss 8.0 (Classifications) | 27242302 |
| eCl@ss 9.0 (Classifications) | 27330201 |
| Mounting type (Computer data) | Front installation |
| Touch technology (Dimensions) | analog resistive (polyester) |
| Degree of protection (General) | IP66 (on the front), IP20 (on the back) |
| Reading angle top (Dimensions) | 45 ° |
| Screen resolution (Dimensions) | 1024 x 600 Pixel(s) |
| Reading angle left (Dimensions) | 65 ° |
| Vibration (operation) (General) | DIN EN 60068-2-6 |
| Housing material (Computer data) | Plastic |
| Reading angle right (Dimensions) | 65 ° |
| Reading angle bottom (Dimensions) | 65 ° |
| Display backlight MTBF (Dimensions) | 25000 h |
| Weight per Piece (excluding packing) | 1.000 g |
| Vibration (operation) (Device supply) | DIN EN 60068-2-6 |
| Power supply unit (Ambient conditions) | 24 V DC ±15 % |
| Ambient temperature (operation) (General) | 0 °C ... 50 °C |
| Permissible humidity (operation) (General) | 10 % ... 95 % (non-condensing) |
| Outer dimensions: width, height, depth (Note) | 268 mm x 190 mm x 5 mm (Dimensions of the front plate) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Typical current consumption (Ambient conditions) | 0.35 A |
| Ambient temperature (storage/transport) (General) | -20 °C ... 85 °C |
| Permissible humidity (storage/transport) (General) | 10 % ... 95 % (non-condensing) |
| Installation dimensions: width, height, depth (Note) | 256 mm x 178 mm x 33 mm (Installation cutout) |
Product Description
Web panel with 25.9 cm / 10.2" TFT-screen (analog-resistive (polyester)), 1024 x 600 pixel(s) (WSVGA), 16.7 million colors, i.MX 6DualLite, 454MHz, 1x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45,
