BTH 2,0

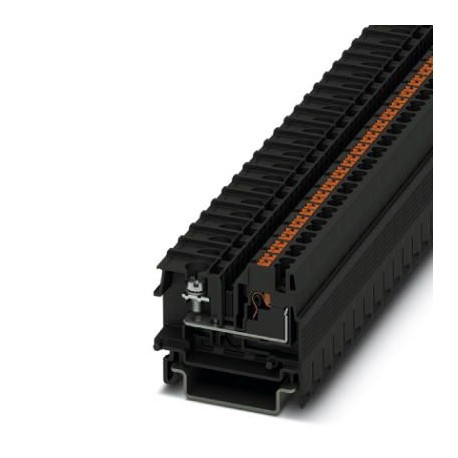

BTH 2,0 3281108 PHOENIX CONTACT Feed-through terminal block
$0.00USD
4104 in stock
Key Specifications
GTIN:4055626119137
Note:Made to Order (non-returnable)
Orderkey:3281108
Catalog page:Page 389 (C-1-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626119137 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3281108 |
| Catalog page | Page 389 (C-1-2017) |
| Packing unit | 50 pc |
| Width (General) | 8 mm |
| Length (General) | 42 mm |
| Country of origin | IN (India) |
| AWG max (Dimensions) | 16 |
| AWG min (Dimensions) | 26 |
| Custom tariff number | 85369010 |
| (Key Commercial Data) | 2.5 mm² / 0.7 kg |
| Minimum order quantity | 50 pc |
| Height NS 35/15 (General) | 44.2 mm |
| Screw thread (Dimensions) | M3,5 |
| Bolt diameter (Dimensions) | 3.5 mm |
| Height NS 35/7,5 (General) | 36.7 mm |
| Color (Key Commercial Data) | black |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 10 mm ... 12 mm |
| Connection method (Dimensions) | Push-in connection |
| Screw thread (Connection data) | M3,5 |
| Setpoint (Key Commercial Data) | 1 N |
| ASD level (Key Commercial Data) | 6.12 (m/s2)2/Hz |
| Bolt diameter (Connection data) | 3.5 mm |
| Hole diameter, min. (Dimensions) | 3.7 mm |
| Shock form (Key Commercial Data) | Half-sine |
| (Connection data (JIS standard)) | IEC 60947-7-1 |
| Acceleration (Key Commercial Data) | 30g |
| Cable lug width, max. (Dimensions) | 6.8 mm |
| Tightening torque max (Dimensions) | 1.2 Nm |
| Connection method (Connection data) | Push-in connection |
| Test spectrum (Key Commercial Data) | Service life test category 2, bogie-mounted |
| Tightening torque, min (Dimensions) | 1 Nm |
| Nominal current IN (Connection data) | 21 A |
| Nominal voltage UN (Connection data) | 600 V |
| Shock duration (Key Commercial Data) | 18 ms |
| Test frequency (Key Commercial Data) | f1= 5 Hz to f2= 250 Hz |
| Weight per Piece (excluding packing) | 8.240 g |
| Hole diameter, min. (Connection data) | 3.7 mm |
| Open side panel (Key Commercial Data) | Yes |
| Test directions (Key Commercial Data) | X-, Y- and Z-axis (pos. and neg.) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Maximum load current (Connection data) | 21 A |
| Number of levels (Key Commercial Data) | 1 |
| Cable lug width, max. (Connection data) | 6.8 mm |
| Connection method (Key Commercial Data) | Push-in connection |
| Finger protection (Key Commercial Data) | guaranteed |
| Shock test result (Key Commercial Data) | Test passed |
| Tightening torque max (Connection data) | 1.3 Nm |
| Bending test turns (Key Commercial Data) | 135 |
| Nominal current IN (Key Commercial Data) | 24 A |
| Nominal voltage UN (Key Commercial Data) | 690 V |
| Short-time current (Key Commercial Data) | 0.3 kA |
| Tightening torque, min (Connection data) | 1 Nm |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PC |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Tensile test result (Key Commercial Data) | Test passed |
| Maximum load current (Key Commercial Data) | 24 A (The maximum load current must not be exceeded by the total current of all connected conductors.) |
| Overvoltage category (Key Commercial Data) | III |
| Result of aging test (Key Commercial Data) | Test passed |
| Tight fit on carrier (Key Commercial Data) | NS 35 |
| Nominal cross section (Key Commercial Data) | 2.5 mm² |
| Number of connections (Key Commercial Data) | 3 |
| Result of bending test (Key Commercial Data) | Test passed |
| Result of thermal test (Key Commercial Data) | Test passed |
| Test duration per axis (Key Commercial Data) | 5 h |
| Conductor cross section AWG max. (Dimensions) | 14 |
| Conductor cross section AWG min. (Dimensions) | 20 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-1 |
| Tractive force setpoint (Key Commercial Data) | 40 N |
| Conductor cross section solid max. (Dimensions) | 2.5 mm² |
| Conductor cross section solid min. (Dimensions) | 0.5 mm² |
| Insulating material group (Key Commercial Data) | IIIa |
| Requirements, voltage drop (Key Commercial Data) | ≤ 3.2 mV |
| Back of the hand protection (Key Commercial Data) | guaranteed |
| Bending test rotation speed (Key Commercial Data) | 10 rpm |
| Result of voltage-drop test (Key Commercial Data) | Test passed |
| Surge voltage test setpoint (Key Commercial Data) | 9.8 kV |
| Conductor cross section flexible max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.14 mm² |
| Connection in acc. with standard (Connection data) | JIS 8207-7-1 |
| Result of surge voltage test (Key Commercial Data) | Test passed |
| Result of tight fit on support (Key Commercial Data) | Test passed |
| Short circuit stability result (Key Commercial Data) | Test passed |
| Test specification, shock test (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 110 °C |
| Result of temperature-rise test (Key Commercial Data) | Test passed |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Cable lug connection according to standard (Dimensions) | DIN 46234 |
| Conductor cross section flexible max. (Connection data) | 2 mm² |
| Conductor cross section flexible min. (Connection data) | 0.5 mm² |
| Max. AWG conductor cross section, flexible (Dimensions) | 14 |
| Min. AWG conductor cross section, flexible (Dimensions) | 26 |
| Max. cross section for cable lug connection (Dimensions) | 2.5 mm² |
| Min. cross section for cable lug connection (Dimensions) | 0.14 mm² |
| Shock protection test specification (Key Commercial Data) | DIN EN 50274 (VDE 0660-514):2002-11 |
| Conductor cross section tensile test (Key Commercial Data) | 2.5 mm² |
| Cable lug connection according to standard (Connection data) | JIS 8207-7-1 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Max. cross section for cable lug connection (Connection data) | 2 mm² |
| Min. cross section for cable lug connection (Connection data) | 0.5 mm² |
| Connection cross sections directly pluggable (Connection data) | 0.8 mm 1.6 mm |
| Oscillation, broadband noise test result (Key Commercial Data) | Test passed |
| Power frequency withstand voltage setpoint (Key Commercial Data) | 1.89 kV |
| Bending test conductor cross section/weight (Key Commercial Data) | 0.14 mm² / 0.2 kg |
| Connection in acc. with standard (Connection data (JIS standard)) | IEC 60947-7-1 |
| Single-wire/terminal point, solid diameter max. (Connection data) | 1.6 mm |
| Single-wire/terminal point, solid diameter min. (Connection data) | 0.8 mm |
| Conductor cross section short circuit testing (Key Commercial Data) | 2.5 mm² |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 0.77 W |
| Result of power-frequency withstand voltage test (Key Commercial Data) | Test passed |
| Test specification, oscillation, broadband noise (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Flammability rating according to UL 94 (Connection data (JIS standard)) | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.34 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.34 mm² |
| Proof of thermal characteristics (needle flame) effective duration (Key Commercial Data) | 30 s |
| Ageing test for screwless modular terminal block temperature cycles (Key Commercial Data) | 192 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Connection data) | 1.25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Connection data) | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Connection data) | 2 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Connection data) | 0.5 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 130 °C |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Key Commercial Data) | Test passed |
Product Description
Feed-through terminal, connection type: Ring cable terminal, Push-in connection, width: 8 mm, color: black, mounting: NS 35/7.5, NS 35/15
