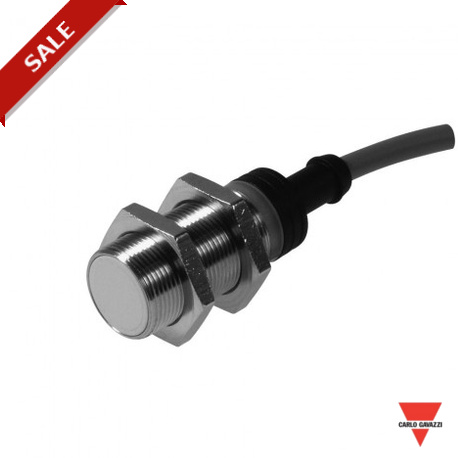

Transmitter with Inductive Prox. Switch FunctionBSA-INDStainless steel housing, cylindricalDiameter: M18Short versionFlush mountingSensing distance: 5 mm Powered by smart-house Available with 2 m. cableFreely programmable channel code by BGP-COD-BATGENERAL SPECIFICATIONSPower ON delayTyp. 5 msEnvironmentDegree of protection IP 67Pollutiondegree 3 (IEC 60664)Operating temperature-25° to +70°C (-13° to +158°F) Storage temperature-30° to +80°C (-22° to +176°F)Mechanical resistanceTightening torque2.6 NmMaterialHousing & BodyStainless steel (1.4301) BackBlack polyesterFront Grey thermoplastic polyesterCable typePVC, grey, oil proof,3 x 0.3 mm2Cable length 2 mWeight 25 gINPUT SPECIFICATIONSREDUCTION FACTORSInputs Inductiveproximity switchNominalsensing distanceSn 5 mmEffective sensing range Sr 0.9 x Sn ≤Sr ≤ 1.1 x Sn Usableoperatingrange Su 0.9 x Sr ≤Su ≤ 1.1 x Sr Assured operatingrange Sa0 < Sa < 0.81 x Sn Hysteresis H Typ. 7%Response time≤ 1smart-housepulse trainThe nominal sensing distance is reduced by the use of metal and alloys otherthanST 37. Most importantreduction factors for the inductive proximity switch are:Stainless steel0.6 x Sn Brass0.4 x Sn Aluminium 0.3 x Sn Copper0.2 x SnSUPPLY SPECIFICATIONSPower supply Suppliedby smart-houseReverse polarity protection YesTYPE SELECTIONHousing Connection Rated operating Ordering no. diameterdist. (Sn)1)Rated operational current Typ. 900 μAM18Cable 5 mm1)BSA-INDFor flush mountingin metalMODE OF OPERATIONWIRING DIAGRAMTheBSA-IND inductive proximityswitchwithbuilt-insmart-house transmitteroperatesin the same way as the commonlyavailablepro- ducts of a similar kind. Oncea metallic object is brought within sens- ing distanceof the inductiveproximity switch the respectivechannel will be activated.Theinductive proximityswitchmaybecodedtoanysmart-house channel by means of the programmer BGP-COD-BAT and the adapter ADAPT 1605.BrownD + D -BlueBlackSpecificationsare subjectto changewithoutnotice(11.09.2007) - A productof the CARLO GAVAZZI Group
