In Stock Hot Product
BP-O-400/10-EW
BP-O-400/10-EW 116616 0002460469 EATON ELECTRIC Surface-mount service distribution board with three-point tu..
$0.00USD
3649 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):300 mm
Width (EF000008):430 mm
Colour (EF000007):Grey
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 300 mm |
| Width (EF000008) | 430 mm |
| Colour (EF000007) | Grey |
| Height (EF000040) | 1090 mm |
| DIN-rail (EF001134) | No |
| With lock (EF006306) | No |
| RAL-number (EF000116) | 7035 |
| Cover model (EF009212) | Closed |
| EMC-version (EF001062) | Yes |
| Inner depth (EF001131) | 257.5 mm |
| Type of door (EF004464) | EV000426 |
| Built-in depth (EF000218) | 300 mm |
| Built-in width (EF000846) | 430 mm |
| Number of rows (EF000266) | 6 |
| Built-in height (EF000332) | 1090 mm |
| Mounting method (EF000003) | Surface mounted |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Steel |
| Type of covering (EF000339) | Door |
| Extension possible (EF001088) | Yes |
| Signal passing door (EF015941) | No |
| With mounting plate (EF000118) | No |
| Neutral terminal block (EF015777) | No |
| Transparent cover/door (EF006244) | No |
| Earthing terminal block (EF015776) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Width in number of modular spacings (EF002950) | 13 |
Product Description

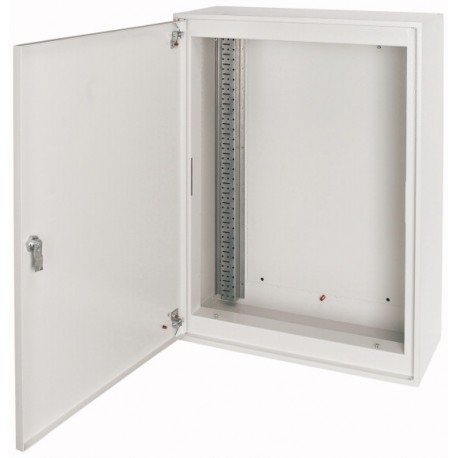

Surface-mount service distribution board with three-point turn-lock, fire-resistant - completely assembled, IP30, gray, RAL 7035, width 400 mm, outside height 1060 mm, front plate height 950 mm, incl.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
