BP 4-5VT

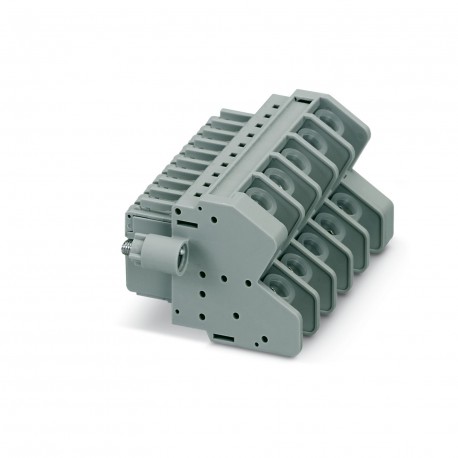

BP 4-5VT 3208734 PHOENIX CONTACT Plug
$0.00USD
4212 in stock
Key Specifications
Color:gray (RAL 7042)
Depth:40 mm
Pitch:6.1 mm
Width:86.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | gray (RAL 7042) |
| Depth | 40 mm |
| Pitch | 6.1 mm |
| Width | 86.5 mm |
| Height | 56.6 mm |
| Potentials | 10 |
| Product type | Plug |
| Screw thread | M4 |
| Mounting type | Insertion in base strip |
| Number of rows | 1 |
| Nominal current | 15 A |
| Nominal voltage | 320 V |
| Open side panel | No |
| Article revision | 02 |
| Stripping length | 8 mm ... 9 mm |
| Cross section AWG | 20 ... 14 (converted acc. to IEC) |
| Tightening torque | 1.2 ... 1.5 Nm |
| Degree of pollution | 3 |
| Insulating material | PA |
| Number of positions | 10 |
| Rated surge voltage | 4 kV |
| Maximum load current | 30 A |
| Overvoltage category | III |
| Nominal cross section | 4 mm² |
| Number of connections | 10 |
| Rated cross section AWG | 10 |
| Insulating material group | I |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Connection in acc. with standard | IEC 61984 |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 20 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 1.02 W |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Product Description
Connector for five voltage transformers
