BMKL 27X12,5 SR

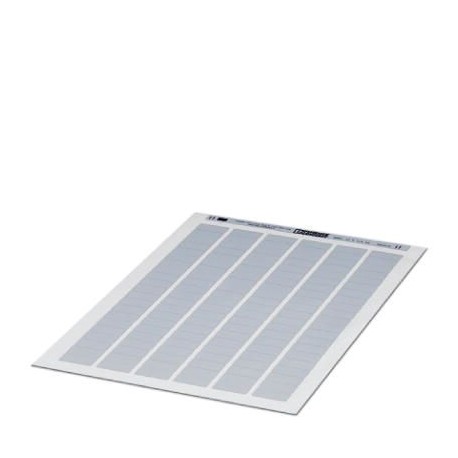

BMKL 27X12,5 SR 0803676 PHOENIX CONTACT Label sheet, DIN A4
$0.00USD
3248 in stock
Key Specifications
GTIN:4017918007638
Note:Made to Order (non-returnable)
Orderkey:0803676
Catalog page:Page 346 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918007638 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0803676 |
| Catalog page | Page 346 (C-3-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39199080 |
| Minimum order quantity | 10 pc |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | silver |
| Cycles (Ambient conditions) | 2 |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | Polyester |
| Components (Ambient conditions) | Silicone-free |
| Width (a) (Key Commercial Data) | 27 mm |
| Length (b) (Key Commercial Data) | 12.5 mm |
| Printability (Ambient conditions) | Office printing systems |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Foil strength (Ambient conditions) | 46 µm |
| Test duration (Ambient conditions) | 96 h |
| Weight per Piece (excluding packing) | 14.260 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 29 µm |
| Base element material (Ambient conditions) | Polyester |
| Marking mounting type (Ambient conditions) | adhesive |
| Ambient temperature (assembly) (Dimensions) | > 5 °C |
| Recommended storage conditions (Dimensions) | 22 °C / 50 % relative humidity |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 120 °C (min.) |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 126 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN ISO 9227:2012-09 |
| Number of individual labels per row (Ambient conditions) | 6 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | following DIN 50018:2013-05 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Label sheet DIN-A4, Elbow, silver, unlabeled, labelable with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems, mounting class: glued, usable surface: 27 x 12.5 mm, Number of individual indexes: 126
