In Stock Hot Product
BL PPC15 3000

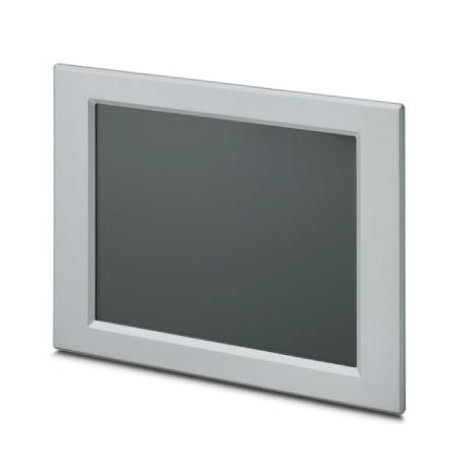

BL PPC15 3000 2701393 PHOENIX CONTACT Panel PC
$0.00USD
4911 in stock
Key Specifications
GTIN:4046356812887
Note:Made to Order (non-returnable)
Orderkey:2701393
(Display):2x COM (RS-232)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356812887 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2701393 |
| (Display) | 2x COM (RS-232) |
| Catalog page | Page 33 (C-6-2017) |
| Packing unit | 1 pc |
| RAM (Display) | 4 GB DDR3 SODIMM |
| Shock (General) | 15g, 11 ms in accordance with IEC 60068-2-27 |
| Slots (Display) | without slots |
| Cooling (Display) | active |
| Country of origin | TW (Taiwan) |
| Network (Display) | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| Processor (Display) | Intel®Celeron®1020E 2.2 GHz |
| Custom tariff number | 84715000 |
| Display (Dimensions) | 38.1 cm/15" TFT |
| Interfaces (Display) | 4x USB 2.0 |
| Shock (Device supply) | 15g, 11 ms in accordance with IEC 60068-2-27 |
| Mass storage (Display) | without mass storage |
| Weight (Computer data) | 9.5 kg |
| Brightness (Dimensions) | 350 cd/m², typical (adjustable) |
| Optical drive (Display) | without drive |
| Realtime clock (Display) | Yes (battery-backed) |
| Backlighting (Dimensions) | CCFL |
| Operating system (Display) | without operating system |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Mounting type (Computer data) | Front installation |
| Touch technology (Dimensions) | analog resistive (polyester) |
| Degree of protection (General) | IP65 (front), IP20 (back) |
| Screen resolution (Dimensions) | 1024 x 768 Pixel(s) (XGA) |
| Vibration (operation) (General) | DIN EN 60068-2-6 |
| External dimension, depth (Note) | 58 mm |
| External dimension, width (Note) | 410 mm |
| External dimension, height (Note) | 309 mm |
| Service life of battery (Display) | 5 years (typical) |
| Display backlight MTBF (Dimensions) | > 50000 h |
| Supply voltage (Ambient conditions) | 24 V DC |
| Installation dimension, width (Note) | 386.6 mm |
| Weight per Piece (excluding packing) | 11,500.000 g |
| Installation dimension, height (Note) | 285 mm |
| Vibration (operation) (Device supply) | DIN EN 60068-2-6 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 10; |
| Power consumption (Ambient conditions) | 45.3 W (typical) |
| Power supply unit (Ambient conditions) | 24 V DC ±20 % |
| Note regarding external dimension (Note) | Includes bezel |
| Ambient temperature (operation) (General) | 0 °C ... 45 °C |
| Supply voltage range (Ambient conditions) | 19.2 V DC ... 28.8 V DC |
| Permissible humidity (operation) (General) | 5 % ... 95 % (non-condensing) |
| Note regarding installation dimension (Note) | Panel cutout |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Ambient temperature (storage/transport) (General) | -40 °C ... 70 °C |
| Permissible humidity (storage/transport) (General) | 5 % ... 95 % (non-condensing) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
