BL PPC12 1000

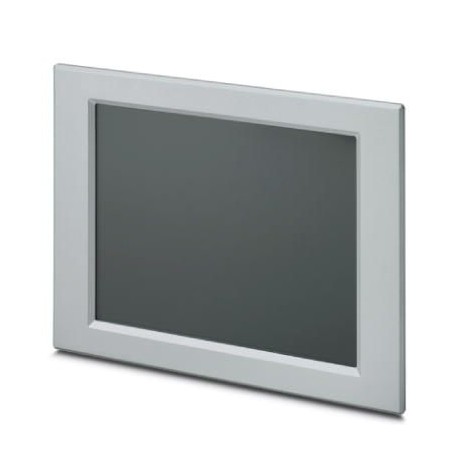

BL PPC12 1000 2701336 PHOENIX CONTACT IP65-rated, fanless, 12-inch industrial panel PC (PPC) including resis..
$0.00USD
3502 in stock
Key Specifications
:1x COM (RS-232/422/485)
RAM:2 GB DDR3 SODIMM
Shock:15g, 11 ms in accordance with IEC 60068-2-27
Slots:without slots
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 1x COM (RS-232/422/485) | |
| RAM | 2 GB DDR3 SODIMM |
| Shock | 15g, 11 ms in accordance with IEC 60068-2-27 |
| Slots | without slots |
| Colors | 16.2 million colors |
| Weight | 4.6 kg |
| Display | 30.7 cm/12.1" TFT |
| Network | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| Processor | Intel®Atom™ N455 1.66 GHz |
| Bus system | without |
| Interfaces | 4x USB 2.0 |
| Resolution | 800 x 600 Pixel (SVGA) |
| Backlighting | LED |
| Mass storage | without mass storage |
| Touch screen | Resistive industrial touch screen |
| Mounting type | Installation in front plate |
| Optical drive | Without drive |
| Processor fan | without fan |
| Realtime clock | Yes (battery-backed) |
| Network chipset | Realtek®8111D PCI-E |
| Operating systems | without operating system |
| Degree of protection | IP65 (front), IP20 (back) |
| Vibration (operation) | DIN EN 60068-2-6 |
| Display backlight MTBF | > 50000 h |
| Service life of battery | 5 years (typical) |
| External dimension, depth | 55 mm |
| External dimension, width | 365 mm |
| External dimension, height | 282 mm |
| Installation dimension, width | 334 mm |
| Installation dimension, height | 253 mm |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Note regarding installation dimension | Installation cutout |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The Basicline PPC12 1000 is a 12-inch panel PC with a vibrant LED backlit display. The Intel®Atom™ 1.66 GHz N455 processor offers a seamless balance of processing power and energy efficiency. A fanless design and rich I/O capability make the BL PPC 1000 an industrial panel PC that can be used in a wide variety of applications. The three built-in COM ports enable connection to legacy RS-232 devices. One COM port can also be configured for RS-422 or RS-485 protocols.
