BG115DS

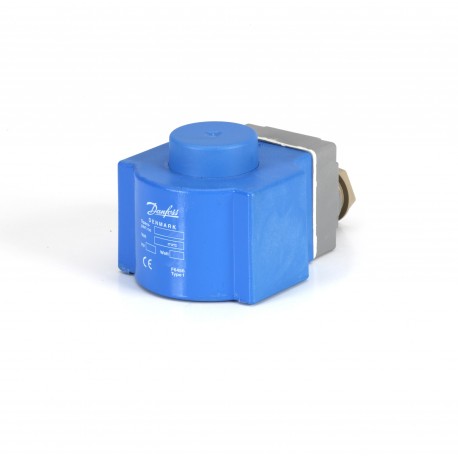

BG115DS 018F6861 DANFOSS CONTROLES INDUSTRIALES COIL 115V 20W DC 1 w. box + packING
$0.00USD
4223 in stock
Key Specifications
EAN ():5702428026291
Type ():BG115DS
Colour ():Blue
Volume ():0.633 Liter
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428026291 |
| Type () | BG115DS |
| Colour () | Blue |
| Volume () | 0.633 Liter |
| Approval () | LLC CDC TYSKCEEACUKCA |
| Coil type () | I |
| Compliance () | EN 60730-1 |
| Net weight () | 0.566 Kg |
| Duty rating () | Continuous |
| Serviceable () | No |
| Gross weight () | 0.59 Kg |
| Actuator size () | 13.5 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Clip-on |
| Packing format () | Multi pack |
| Coil connection () | Connection Box |
| SCIP dossier no. () | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Type designation () | BG115DS |
| Spare part number () | 018F6861 |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV224BEV250B |
| Enclosure rating IP () | IP67 |
| Product accessories () | Solenoid coil accessories |
| Coil design standard () | VDE 0580 |
| Electrical connector () | Screwed cable entry |
| Electrical connection () | Terminal box |
| Supply voltage [V] DC () | 115 V |
| Power consumption [W] DC () | 19 W |
| Product Name Description () | Solenoid coil |
| SCIP dossier product name () | Solenoid coils |
| Electrical connection size () | Pg 13.5 |
| Rel. Humidity [% RH] [max] () | 100 % |
| Rel. Humidity [% RH] [min] () | 0 % |
| Quantity per packing format () | 24 pc |
| Coil winding insulation class () | Class H to IEC 85 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 120 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, BG115DS, Terminal box, Multi pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: Terminal box, Enclosure rating IP: IP67
