BCVP-508W- 3 GY

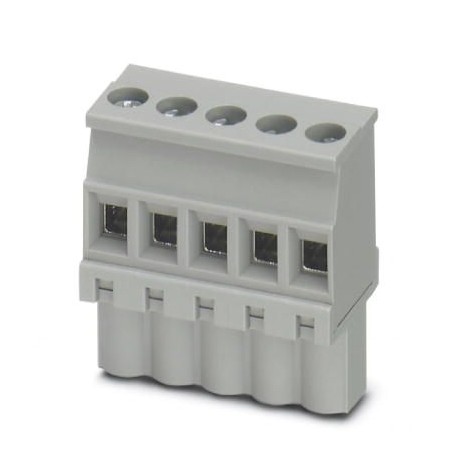

BCVP-508W- 3 GY 5439785 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º po..
$0.00USD
3316 in stock
Key Specifications
GTIN:Four trillion forty six billion three hundred fifty six million four hundred seventy one thousand seven hundred eighty seven
Note:Manufacturing to the order (no recovery)
(General):2.5 mm2
Order Code:Five million four hundred thirty nine thousand seven hundred eighty five
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | Four trillion forty six billion three hundred fifty six million four hundred seventy one thousand seven hundred eighty seven |
| Note | Manufacturing to the order (no recovery) |
| (General) | 2.5 mm2 |
| Order Code | Five million four hundred thirty nine thousand seven hundred eighty five |
| Packaging unit | 50 pcs |
| Not (Trade data) | 5.08 mm |
| Country of origin | (Germany) |
| Rated (Trade data) | 5.08 mm |
| Minimum order quantity | 100 pcs |
| Width [ w ] (Trade data) | 10.16 mm |
| Height [ h ] (Trade data) | 12,6 mm |
| Length [ l ] (Trade data) | 26 mm |
| Thread screws (Dimensions) | M3 |
| Family articles (Dimensions) | BCVP-W |
| Nominal Section (Dimensions) | 2.5 mm2 |
| Number of poles (Dimensions) | Two |
| Number of the customs tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Rated current IN (Dimensions) | Twelve |
| (Standards and specifications) | The manufacturer's declaration in the tab "Downloads" contains detailed information on hazardous substances. |
| Type of connection (Dimensions) | Screw with ring |
| Group of insulation (Dimensions) | I |
| Rated voltage (II/2) (Dimensions) | 630 V |
| Length stripping tool (Dimensions) | 7 mm |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Maximum charge current (Dimensions) | 12 A (for wire cross-section 2.5 mm2) |
| Tightening torque max. (Dimensions) | 0.6 Nm |
| Tightening torque min. (Dimensions) | 0.5 Nm |
| Weight per piece (excluding packing) | 0,007 KGM |
| Reference voltage (III/3) (Dimensions) | 250 V |
| Wire cross-Section rigid max. (General) | 2.5 mm2 |
| Cross Section of wire AWG max. (General) | Twelve |
| Wire cross-Section, rigid min. (General) | 0,2 mm2 |
| China RoHS (Standards and specifications) | Period of intended use (EFUP) : 50 years |
| REACh SVHC (Standards and specifications) | Lead 7439-92-1 |
| Wire cross-Section flexible max. (General) | 2.5 mm2 |
| Wire cross-Section flexible min. (General) | 0,2 mm2 |
| Impulse voltage assigned (III/2) (Dimensions) | 4 kV |
| Impulse voltage assigned (III/3) (Dimensions) | 4 kV |
| Impulse voltage assigned to (II/2) (Dimensions) | 4 kV |
| Cross Section of the conductor AWG min. (General) | Twenty four |
| Flammability class according to UL 94 (Dimensions) | V0 |
| 2 conductors flexible same cross-section max. (General) | 1.5 mm2 |
| 2 conductors flexible same cross-section min. (General) | 0,2 mm2 |
| 2 solid conductors of the same cross-section max. (General) | 1 mm2 |
| 2 solid conductors of the same cross-section min. (General) | 0,2 mm2 |
| Connection according to standard (Characteristics of connection) | ASS |
| Flammability class according to UL 94 (Characteristics of connection) | V0 |
| Wire cross-Section flexible with ferrule and inlet cone insulation max. (General) | 2.5 mm2 |
| Wire cross-Section flexible with ferrule and inlet cone insulation min. (General) | 0.25 mm2 |
| Wire cross-Section flexible with wire-end sleeve without inlet cone insulation max. (General) | 0.25 mm2 |
| 2-conductor, flexible, in the same section with AEH without inlet cone insulation max. (General) | 1 mm2 |
| 2-conductor, flexible, in the same section with AEH without inlet cone insulation min. (General) | 0.25 mm2 |
| 2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation min. (General) | 0.5 mm2 |
