BCP-500-5 GN 3PA

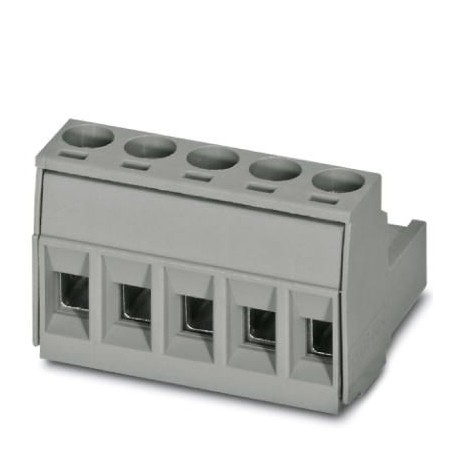

BCP-500- 5 GN 3PA 5474339 PHOENIX CONTACT PCB connector
$0.00USD
4870 in stock
Key Specifications
GTIN:4055626202181
Note:Made to Order (non-returnable)
Orderkey:5474339
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626202181 |
| Note | Made to Order (non-returnable) |
| Orderkey | 5474339 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Packing unit | 100 pc |
| Country of origin | CN (China) |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 85366990 |
| REACh SVHC (General) | Lead 7439-92-1 |
| Minimum order quantity | 100 pc |
| Pitch (Key Commercial Data) | 5 mm |
| Connection method (Dimensions) | Screw connection with tension sleeve |
| Range of articles (Dimensions) | BCP |
| Number of positions (Dimensions) | 5 |
| Dimension a (Key Commercial Data) | 20 mm |
| Width [ w ] (Key Commercial Data) | 25 mm |
| Height [ h ] (Key Commercial Data) | 15 mm |
| Length [ l ] (Key Commercial Data) | 18.2 mm |
| Nominal cross section (Dimensions) | 2.5 mm² |
| Weight per Piece (excluding packing) | 6.230 g |
Product Description
Connector for printed circuit board, nominal section: 2.5 mm², color: off-white green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of pote
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
