BCP-500-15 GN BDWHB2SOVPE250

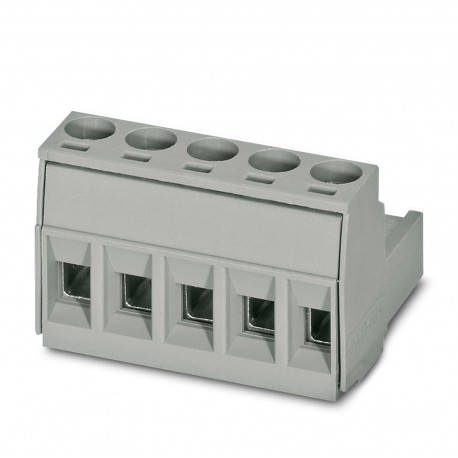

BCP-500-15 GN BDWHB2SOVPE250 5453347 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3553 in stock
Key Specifications
EAN:Four trillion forty six billion three hundred fifty six million eight hundred ninety six thousand one hundred seventy seven
Key order:Five million four hundred fifty three thousand three hundred forty seven
(Drawings):
Key selling:AAYBAA -
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion forty six billion three hundred fifty six million eight hundred ninety six thousand one hundred seventy seven |
| Key order | Five million four hundred fifty three thousand three hundred forty seven |
| (Drawings) | |
| Key selling | AAYBAA - |
| Packing unit | 250 pcs |
| Step (Drawings) | 5 mm |
| Country of origin | CN (China) |
| ETIM 4.0 (eCl@ss) | EC002637 |
| ETIM 5.0 (eCl@ss) | EC002638 |
| ETIM 6.0 (eCl@ss) | EC002638 |
| ETIM 7.0 (eCl@ss) | EC002638 |
| (Data connection) | CUL |
| Average (Drawings) | 70 mm |
| Diagram (Drawings) | |
| UNSPSC 13.2 (ETIM) | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 18.0 (ETIM) | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 19.0 (ETIM) | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 20.0 (ETIM) | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 21.0 (ETIM) | Thirty nine million one hundred twenty one thousand four hundred nine |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| eCl@ss 4.0 (Ratings) | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 4.1 (Ratings) | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.0 (Ratings) | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.1 (Ratings) | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 (Ratings) | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 (Ratings) | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 8.0 (Ratings) | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 9.0 (Ratings) | Twenty seven million four hundred forty thousand three hundred nine |
| Isolation (Dimensions) | PA |
| Minimum order quantity | 250 pcs |
| Width [ w ] (Drawings) | 75 mm |
| Height [ h ] (Drawings) | 15 mm |
| Length [ l ] (Drawings) | 18,2 mm |
| Screw thread (Dimensions) | M3 |
| Number of poles (Dimensions) | Fifteen |
| Length desaislar (Dimensions) | 7 mm |
| (Standards and specifications) | You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
| Family of articles (Dimensions) | BCP |
| Nominal current IN (Dimensions) | 12 To |
| Type of connection (Dimensions) | Connection by screw with capsule-traction |
| Unit weight (excluding packaging) | 23,850 g |
| Nominal cross section (Dimensions) | 2.5 mm2 |
| Tightening torque max. (Dimensions) | 0.5 Nm |
| Tightening torque min. (Dimensions) | 0.4 Nm |
| Group insulating material (Dimensions) | I |
| Tension and sizing (II/2) (Dimensions) | 630 V |
| Tension and sizing (III/2) (Dimensions) | 320 V |
| Tension and sizing (III/3) (Dimensions) | 250 V |
| Core cross-section rigid min. (Overview) | 0,2 mm2 |
| Section of conductor AWG max. (Overview) | Twelve |
| Section of conductor AWG min. (Overview) | Twenty four |
| China RoHS (Standards and specifications) | Space of time for the intended use (FEUP): 50 years |
| REACh SVHC (Standards and specifications) | Lead 7439-92-1 |
| Section of conductor rigid max. (Overview) | 2.5 mm2 |
| Transient voltage design (II/2) (Dimensions) | 4 kV |
| Connection according to standard (Dimensions) | EN-VDE |
| Section of flexible conductor max. (Overview) | 2.5 mm2 |
| Transient voltage design (III/2) (Dimensions) | 4 kV |
| Transient voltage design (III/3) (Dimensions) | 4 kV |
| Section of flexible conductor, min. (Overview) | 0,2 mm2 |
| Connection according to standard (Data connection) | EN-VDE |
| Class of flammability according to UL 94 (Dimensions) | V0 |
| Class of flammability according to UL 94 (Data connection) | V0 |
| 2 conductors with same cross section, rigid max. (Overview) | 1 mm2 |
| 2 conductors with same cross section, rigid min. (Overview) | 0,2 mm2 |
| 2 conductors with same cross section, flexible max. (Overview) | 1.5 mm2 |
| 2 conductors with same cross section, flexible, min. (Overview) | 0,2 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. (Overview) | 2.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. (Overview) | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. (Overview) | 2.5 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. (Overview) | 0.25 mm2 |
| 2 conductors with same cross section flexible with toe cap, without plastic sleeve max. (Overview) | 1 mm2 |
| 2 conductors with same cross section flexible with toe cap, without plastic sleeve min. (Overview) | 0.25 mm2 |
| 2 conductors with same cross section flexible with toe cap TWIN with plastic sleeve max. (Overview) | 1.5 mm2 |
| 2 conductors with same cross section flexible with toe cap TWIN with plastic sleeve min. (Overview) | 0.5 mm2 |
Product Description
Connector for printed circuit board, nominal section: 2.5 mm², color: off-white green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of pote
