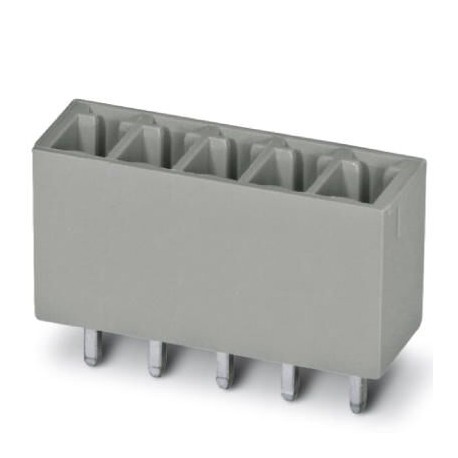

BCH-381V-4 GN
BCH-381V- 4 GN 5444660 PHOENIX CONTACT Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º p..
$0.00USD
3196 in stock
Key Specifications
GTIN:4046356806718
Orderkey:5444660
(General):CUL
(Drawings):
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356806718 |
| Orderkey | 5444660 |
| (General) | CUL |
| (Drawings) | |
| Packing unit | 1 pc |
| Pitch (Drawings) | 3.81 mm |
| UNSPSC 11 (ETIM) | 39121432 |
| Width (Drawings) | 16.63 mm |
| Country of origin | CN (China) |
| ETIM 3.0 (eCl@ss) | EC001121 |
| ETIM 4.0 (eCl@ss) | EC002637 |
| ETIM 5.0 (eCl@ss) | EC002637 |
| ETIM 6.0 (eCl@ss) | EC002637 |
| ETIM 7.0 (eCl@ss) | EC002637 |
| Height (Drawings) | 9.2 mm |
| Length (Drawings) | 7.4 mm |
| Color (Dimensions) | pastel green |
| UNSPSC 13.2 (ETIM) | 39121409 |
| UNSPSC 18.0 (ETIM) | 39121409 |
| UNSPSC 19.0 (ETIM) | 39121409 |
| UNSPSC 20.0 (ETIM) | 39121409 |
| UNSPSC 21.0 (ETIM) | 39121409 |
| UNSPSC 6.01 (ETIM) | 30211801 |
| UNSPSC 12.01 (ETIM) | 39121409 |
| Custom tariff number | 85366930 |
| UNSPSC 7.0901 (ETIM) | 39121432 |
| Dimension a (Drawings) | 11.43 mm |
| Minimum order quantity | 100 pc |
| Width [ w ] (Drawings) | 16.63 mm |
| Height [ h ] (Drawings) | 12.6 mm |
| Length [ l ] (Drawings) | 7.4 mm |
| Pin dimensions (Drawings) | 0.8 x 0.8 mm |
| Drilling diagram (Drawings) | |
| (Standards and Regulations) | No hazardous substances above threshold values |
| eCl@ss 4.0 (Classifications) | 27260700 |
| eCl@ss 4.1 (Classifications) | 27260700 |
| eCl@ss 5.0 (Classifications) | 27260700 |
| eCl@ss 5.1 (Classifications) | 27260700 |
| eCl@ss 6.0 (Classifications) | 27260700 |
| eCl@ss 7.0 (Classifications) | 27440402 |
| eCl@ss 8.0 (Classifications) | 27440402 |
| eCl@ss 9.0 (Classifications) | 27440402 |
| Range of articles (Dimensions) | BCH-V |
| Nominal current IN (Dimensions) | 8 A |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 4 |
| Rated voltage (II/2) (Dimensions) | 320 V |
| Rated voltage (III/2) (Dimensions) | 160 V |
| Rated voltage (III/3) (Dimensions) | 160 V |
| Length of the solder pin (Drawings) | 3.4 mm |
| Weight per Piece (excluding packing) | 1.058 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Rated surge voltage (II/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/3) (Dimensions) | 2.5 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Printed circuit board base housing, nominal section: 1.5 mm², color: whitish green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Drilling diagram
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
