BCH-350V-10 BK

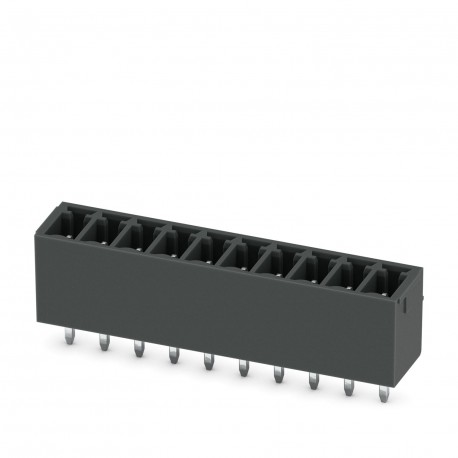

BCH-350V-10 BK 5452100 PHOENIX CONTACT Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º p..
$0.00USD
4386 in stock
Key Specifications
GTIN:Four trillion forty six billion three hundred fifty six million eight hundred fifty four thousand eight hundred eighteen
Note:Manufacturing to the order (no recovery)
(General):ASS
Order Code:Five million four hundred fifty two thousand one hundred
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | Four trillion forty six billion three hundred fifty six million eight hundred fifty four thousand eight hundred eighteen |
| Note | Manufacturing to the order (no recovery) |
| (General) | ASS |
| Order Code | Five million four hundred fifty two thousand one hundred |
| Packaging unit | 100 pcs |
| Not (Trade data) | 3.5 mm |
| Country of origin | CN (China) |
| Rated (Trade data) | 31.5 mm |
| Width (Trade data) | 36,4 mm |
| Length (Trade data) | 7.4 mm |
| Colours (Dimensions) | black |
| Minimum order quantity | 100 pcs |
| Width [ w ] (Trade data) | 36,4 mm |
| Height [ h ] (Trade data) | 12,6 mm |
| Length [ l ] (Trade data) | 7.4 mm |
| Family articles (Dimensions) | BCH-V |
| Mounting height (Trade data) | 9.2 mm |
| Number of poles (Dimensions) | Ten |
| Number of the customs tariff | Eighty five million three hundred sixty six thousand nine hundred thirty |
| Rated current IN (Dimensions) | Eight |
| (Standards and specifications) | No hazardous substances exceeding the threshold values ; |
| Group of insulation (Dimensions) | I |
| Insulating material (Dimensions) | PA |
| Length of the picot (Trade data) | 3.4 mm |
| Dimensions of spikes (Trade data) | 0.8 x 0.8 mm |
| Rated voltage (II/2) (Dimensions) | 320 V |
| Rated voltage (III/2) (Dimensions) | 160 V |
| Weight per piece (excluding packing) | Of 0.002 KGM |
| Reference voltage (III/3) (Dimensions) | 160 V |
| China RoHS (Standards and specifications) | Period of intended use : unlimited = EFUP-e |
| Connection according to standard (General) | EN-VDE |
| Connection according to standard (Dimensions) | EN-VDE |
| Impulse voltage assigned (III/2) (Dimensions) | 2.5 kV |
| Impulse voltage assigned (III/3) (Dimensions) | 2.5 kV |
| Flammability class according to UL 94 (General) | V0 |
| Impulse voltage assigned to (II/2) (Dimensions) | 2.5 kV |
| Flammability class according to UL 94 (Dimensions) | V0 |
Product Description
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 10, nu
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
