BCAV-D-10/G

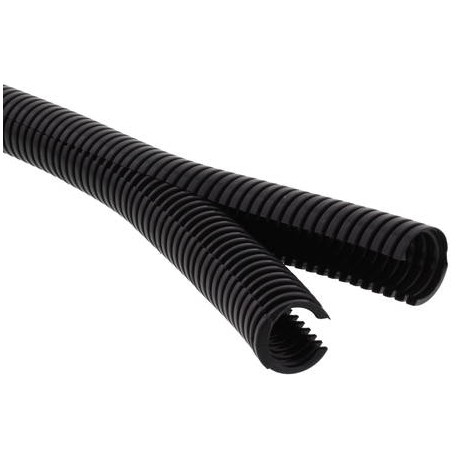

BCAV-D-10/G 10107141 WISKA Double open tube PA, V2, standard grey weight, DN10/13
$0.00USD
3931 in stock
Key Specifications
NW (Features):10
Type (Features):BCAV-10-D-BG
Width B (Features):2,8 mm
Material (Features):PA6 UL94-V2
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NW (Features) | 10 |
| Type (Features) | BCAV-10-D-BG |
| Width B (Features) | 2,8 mm |
| Material (Features) | PA6 UL94-V2 |
| Ø inside (Features) | 7,9 mm |
| Packing unit (Features) | 50 m |
| Product Color (Features) | RAL 7031 |
| Profile width A (Features) | 4 mm |
| Temp. range max (Features) | 125 °C |
| Temp. range min (Features) | -40 °C |
| Bending radius R (Features) | 60 mm |
| Wall thickness S (Features) | 0,5 mm |
| Operational areas (Features) | for subsequent assembly |
| Order no. RAL 7031 (Features) | 10107141 |
| Closable (two-part) (Features) | yes |
| ETIM-Classification (Features) | EC001177 |
| External diameter ED (Features) | 12,9 mm |
Product Description
Conduit, devided PA6 UL94-V2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
