In Stock Hot Product
BCAB-L-14/B

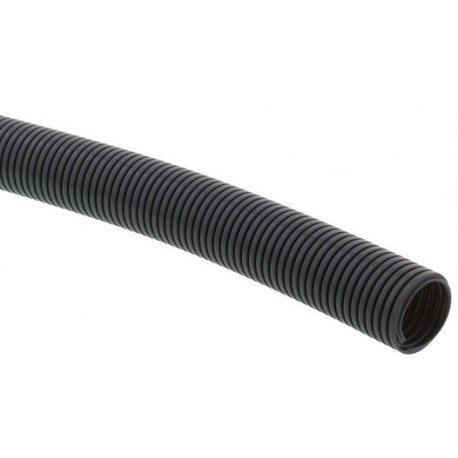

BCAB-L-14/G 10109184 WISKA DN14/18 Light Grey PA Tube
$0.00USD
4583 in stock
Key Specifications
NW (Features):14
Type (Features):BCAB-L-14-BK
Model (Features):light
Width B (Features):2,3 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NW (Features) | 14 |
| Type (Features) | BCAB-L-14-BK |
| Model (Features) | light |
| Width B (Features) | 2,3 mm |
| Material (Features) | PA6 UL94-HB |
| Ø inside (Features) | 14,4 mm |
| Packing unit (Features) | 50 m |
| Product Color (Features) | RAL 9005 |
| Profile width A (Features) | 3,3 mm |
| Temp. range max (Features) | 140 °C |
| Temp. range min (Features) | -40 °C |
| Wall thickness S (Features) | 0,3 mm |
| Operational areas (Features) | Mechanical plant engineering |
| Order no. RAL 9005 (Features) | 10109184 |
| ETIM-Classification (Features) | EC001175 |
| External diameter ED (Features) | 18,5 mm |
Product Description
Conduit, PA 6 HB, lightweight, RAL 9005, NW14
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
