BCAB-L-10/G

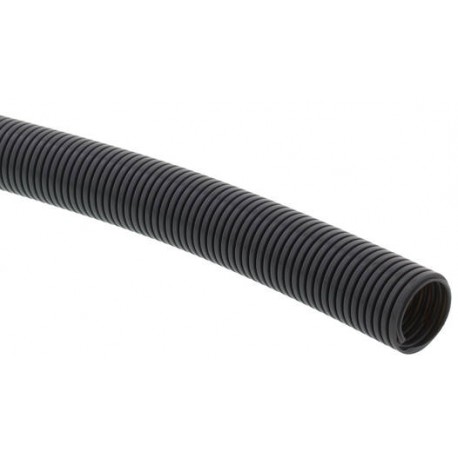

BCAB-L-10/B 10109191 WISKA DN10/13 Black Lightweight PA Tube
$0.00USD
4211 in stock
Key Specifications
NW (Features):10
Type (Features):BCAB-L-10-BG
Model (Features):light
Width B (Features):1,8 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NW (Features) | 10 |
| Type (Features) | BCAB-L-10-BG |
| Model (Features) | light |
| Width B (Features) | 1,8 mm |
| Material (Features) | PA6 UL94-HB |
| Ø inside (Features) | 10 mm |
| Packing unit (Features) | 50 m |
| Product Color (Features) | RAL 7031 |
| Profile width A (Features) | 2,7 mm |
| Temp. range max (Features) | 140 °C |
| Temp. range min (Features) | -40 °C |
| Bending radius R (Features) | 20 mm |
| Wall thickness S (Features) | 0,3 mm |
| Operational areas (Features) | Mechanical plant engineering |
| Order no. RAL 7031 (Features) | 10109191 |
| ETIM-Classification (Features) | EC001175 |
| External diameter ED (Features) | 13 mm |
Product Description
Conduit, PA 6 HB, lightweight, RAL 7031, NW10
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
