In Stock Hot Product
BCA-D-36/B

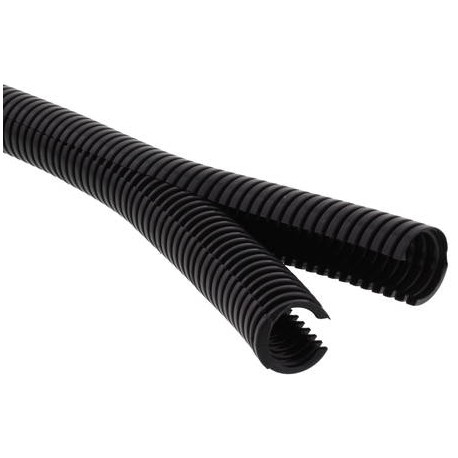

BCA-D-36/B 10107125 WISKA Double open tube PA, V0, standard black weight, DN36/42
$0.00USD
4225 in stock
Key Specifications
NW (Features):36
Type (Features):BCA-36-D-BK
Width B (Features):4,2 mm
Material (Features):PA6 UL94-V0
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NW (Features) | 36 |
| Type (Features) | BCA-36-D-BK |
| Width B (Features) | 4,2 mm |
| Material (Features) | PA6 UL94-V0 |
| Ø inside (Features) | 33,9 mm |
| Packing unit (Features) | 25 m |
| Product Color (Features) | RAL 9005 |
| Profile width A (Features) | 6,2 mm |
| Temp. range max (Features) | 140 °C |
| Temp. range min (Features) | -40 °C |
| Bending radius R (Features) | 160 mm |
| Wall thickness S (Features) | 0,8 mm |
| Operational areas (Features) | EN 45545 - Railway |
| Order no. RAL 9005 (Features) | 10107125 |
| Closable (two-part) (Features) | yes |
| ETIM-Classification (Features) | EC001177 |
| External diameter ED (Features) | 42,6 mm |
Product Description
Conduit devided PA6 UL94-V0, RAL 9005, NW36
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
