B500ND

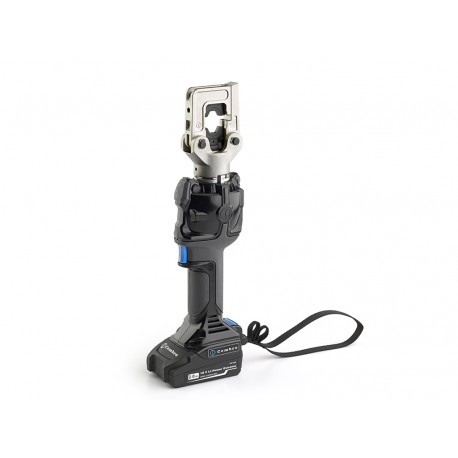

B500ND 2596220 CEMBRE B500ND Herramienta accionamiento a batería de engaste Aplicaciones Cu de 6 a 240 mm²
$0.00USD
3429 in stock
Key Specifications
Width (Technical characteristicsOther characteristics):81 mm
Height (Technical characteristicsOther characteristics):136 mm
Length (Technical characteristicsOther characteristics):396 mm
Weight (Technical characteristicsOther characteristics):3.15 kg
Supplier Information
CEMBRE
Products: 12084
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Width (Technical characteristicsOther characteristics) | 81 mm |
| Height (Technical characteristicsOther characteristics) | 136 mm |
| Length (Technical characteristicsOther characteristics) | 396 mm |
| Weight (Technical characteristicsOther characteristics) | 3.15 kg |
| Battery current (Technical characteristicsOther characteristics) | 2 Ah |
| Battery voltage (Technical characteristicsOther characteristics) | 18 V |
| Force developed (Technical characteristicsOther characteristics) | 60 kN |
| Battery material (Technical characteristicsOther characteristics) | Li-Ion |
| Max operating temperature range (Technical characteristicsOther characteristics) | -15 °C |
| Min operating temperature range (Technical characteristicsOther characteristics) | 50 °C |
Product Description
CORDLESS CRIMPING TOOL CU 6 TO 240 MM²
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
B500nd is the first of a new generation of hand-held cordless tools, characterized by the “Bilinear” structure of the tool’s mechanics.Equipped with intelligent automatic return at the end of the pressing cycle (Smart Release).Equipped with Li-Ion 18 V-2Ah rechargeable high capacity batteries.Suitable for a wide range of connectors up to 500 MCM using die sets common to the Cembre 6 ton tooling range.Fitted with a maximum pressure sensor for enhanced precision and repeatability of the maximum pressure cycle, and a pressure relief valve providing additional safety for the operator.Electronic Pressure SystemThe EPS guarantees the precision of the crimping operation, checking the actual value of pressure and informing the operator about possible errors (EPS).The OLED display provides essential real time operating data, including:
