In Stock Hot Product
B500-KV

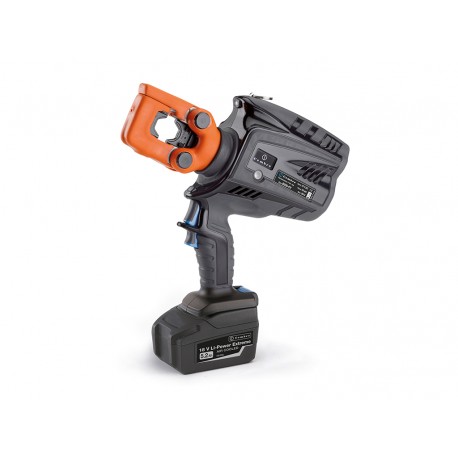

B500-KV 2596207 CEMBRE CORDLESS HYDRAULIC CRIMPING TOOL
$0.00USD
4734 in stock
Key Specifications
Three hundred ():One hundred twenty
Lugs andJoints B. T. ():Lugspre-insulated
Width (Technical characteristicsOther features):83 mm
Height (Technical characteristicsOther features):347 mm
Supplier Information
CEMBRE
Products: 12084
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Three hundred () | One hundred twenty |
| Lugs andJoints B. T. () | Lugspre-insulated |
| Width (Technical characteristicsOther features) | 83 mm |
| Height (Technical characteristicsOther features) | 347 mm |
| Length (Technical characteristicsOther features) | 305 mm |
| Weight (Technical characteristicsOther features) | 4.3 kg |
| The force developed (Technical characteristicsOther features) | 63 kN |
| The voltage of the battery (Technical characteristicsOther features) | 18 V |
| The capacity of the battery (Technical characteristicsOther features) | 4 Ah |
| The material of the Battery (Technical characteristicsOther features) | Li-Ion Battery |
| Maximum temperature of use for short periods (Technical characteristicsOther features) | 50 °C |
| Minimum operating temperature for short periods (Technical characteristicsOther features) | -15 °C |
Product Description
CORDLESS CRIMPING TOOL CU 6 TO 240 MM² ( INSULATED )
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VERSION ISOLATED
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
