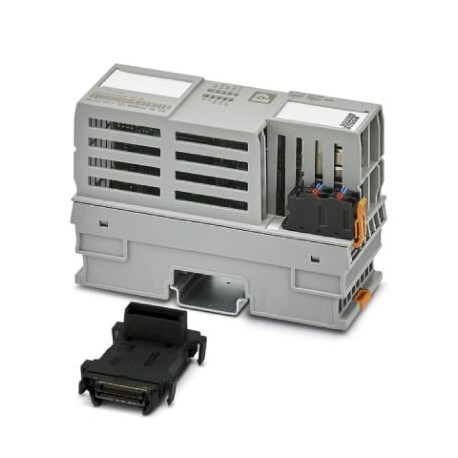

AXL P BK PN AF
AXL P BK PN AF 2316390 PHOENIX CONTACT Axioline P, PROFINET, RJ45 socket, auto negotiation and auto crossing..
$0.00USD
3906 in stock
Key Specifications
GTIN:4055626368382
Orderkey:2316390
(Drawings):
Catalog page:Page 98 (C-6-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626368382 |
| Orderkey | 2316390 |
| (Drawings) | |
| Catalog page | Page 98 (C-6-2019) |
| Depth (Note) | 75 mm |
| Packing unit | 1 pc |
| Width (Note) | 45 mm |
| Height (Note) | 126.93 mm |
| Country of origin | US (United States) |
| ETIM 5.0 (eCl@ss) | EC001604 |
| ETIM 6.0 (eCl@ss) | EC001604 |
| ETIM 7.0 (eCl@ss) | EC001604 |
| Custom tariff number | 85176200 |
| Designation (General) | Axioline P local bus |
| (Axioline potentials) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 5g |
| Color (Connection data) | gray |
| No. of channels (General) | 2 |
| Note on dimensions (Note) | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
| ATEX (Axioline potentials) | II 3 G Ex ec IIC T4 Gc IBExU 18ATEXB018X |
| Dimensional drawing (Note) | |
| Connection method (General) | Bus base module |
| IECEx (Axioline potentials) | Ex ec IIC T4 Gc IECEx IBE 18.0023X |
| Net weight (Connection data) | 312.6 g |
| Transmission speed (General) | 100 Mbps |
| eCl@ss 8.0 (Classifications) | 27242608 |
| eCl@ss 9.0 (Classifications) | 27242608 |
| Connection diagram (Drawings) | |
| Application drawing (Drawings) | |
| Transmission physics (General) | Ethernet in RJ45 twisted pair |
| Mounting type (Connection data) | DIN rail mounting |
| Designation (Ambient conditions) | Power supply |
| Degree of protection (Dimensions) | IP20 |
| Maximum altitude (Connection data) | 2000 m |
| Utilization restriction (Drawings) | EMC: class A product, see manufacturer's declaration in the download area |
| (System limits of the bus coupler) | Polarity reversal protection of the supply voltage electronic |
| Mounting position (Connection data) | any |
| UL, USA/Canada (Axioline potentials) | Class I, Div. 2, Groups A, B, C, D T4Class I, Zone 2, IIC T4 |
| Weight per Piece (excluding packing) | 200.000 g |
| Air pressure (operation) (Dimensions) | up to 2000 m above sea level |
| Degree of pollution (Connection data) | 2 |
| Stripping length (Ambient conditions) | 8 mm |
| Connection method (Ambient conditions) | Push-in connection |
| Mechanical tests (Axioline potentials) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 2g |
| Protection class (Axioline potentials) | III (IEC 61140, EN 61140, VDE 0140-1) |
| Number of supported devices (Interfaces) | max. 8 (per redundant PROFIBUS PA segments) |
| Overvoltage category (Axioline potentials) | II |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C (Mounting position: wall mounting on horizontal DIN rail) |
| Air pressure (storage/transport) (Dimensions) | up to 2000 m above sea level |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Designation (System limits of the bus coupler) | Supply of the Axioline P local bus UBus |
| Note on weight specifications (Connection data) | with bus base module |
| Supply voltage (System limits of the bus coupler) | 5 V DC (via bus base module) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Power supply unit (System limits of the bus coupler) | 2 A |
| Conductor cross section AWG max. (Ambient conditions) | 16 |
| Conductor cross section AWG min. (Ambient conditions) | 24 |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Protective circuit (System limits of the bus coupler) | Surge protection of the supply voltage electronic |
| Current consumption (System limits of the bus coupler) | 3 A (via bus base module) |
| Conductor cross section solid max. (Ambient conditions) | 1.5 mm² |
| Conductor cross section solid min. (Ambient conditions) | 0.2 mm² |
| Supply voltage range (System limits of the bus coupler) | 19.2 V DC ... 30 V DC |
| Conductor cross section flexible max. (Ambient conditions) | 1.5 mm² |
| Conductor cross section flexible min. (Ambient conditions) | 0.2 mm² |
Product Description
Axioline P bus coupler for PROFINET. Establishes connections to PROFIBUS PA power supplies and Axioline P I/O modules along the AXIOLINE P local bus. (Includes power supply connector and bus socket mo
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection diagram
