AXL F BK EIP

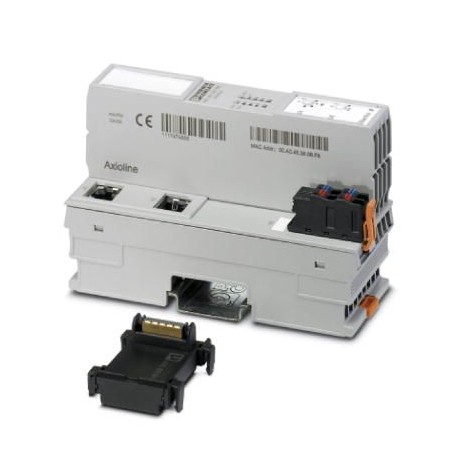

AXL F BK EIP 2688394 PHOENIX CONTACT Bus coupler
$0.00USD
3728 in stock
Key Specifications
GTIN:4046356606486
Orderkey:2688394
Catalog page:Page 102 (C-6-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356606486 |
| Orderkey | 2688394 |
| Catalog page | Page 102 (C-6-2017) |
| Packing unit | 1 pc |
| (Dimensions) | -25 °C ... 55 °C (Mounting position: any) |
| Country of origin | DE (Germany) |
| Custom tariff number | 85176200 |
| Designation (General) | Service |
| (Axioline potentials) | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| No. of channels (General) | 2 |
| Connection method (General) | Micro USB type B |
| Depth (Key Commercial Data) | 74 mm |
| Width (Key Commercial Data) | 45 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 126.1 mm |
| Net weight (Connection data) | 177 g |
| Transmission speed (General) | 100 Mbps |
| Transmission physics (General) | Ethernet in RJ45 twisted pair |
| Mounting type (Connection data) | DIN rail |
| Designation (Ambient conditions) | Axioline F connector |
| Degree of protection (Dimensions) | IP20 |
| (System limits of the bus coupler) | Polarity reversal protection of the supply voltage |
| Weight per Piece (excluding packing) | 177.000 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Stripping length (Ambient conditions) | 8 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Ambient conditions) | Push-in connection |
| Mechanical tests (Axioline potentials) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Protection class (Axioline potentials) | III, IEC 61140, EN 61140, VDE 0140-1 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Note on the connection method (General) | Auto negotiation and autocrossing |
| Note on dimensions (Key Commercial Data) | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
| Number of supported devices (Interfaces) | max. 63 (per station) |
| Dimensional drawing (Key Commercial Data) | |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C (Mounting position: wall mounting on horizontal DIN rail) |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Designation (System limits of the bus coupler) | Axioline F local bus supply (UBus) |
| Note on weight specifications (Connection data) | with connector and bus base module |
| Supply voltage (System limits of the bus coupler) | 5 V DC (via bus base module) |
| Note on the connection method (Ambient conditions) | Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual. |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Power consumption (System limits of the bus coupler) | max. 14 W (with 2 A load at UBusfor the I/Os) |
| Power supply unit (System limits of the bus coupler) | 2 A |
| Conductor cross section AWG max. (Ambient conditions) | 16 |
| Conductor cross section AWG min. (Ambient conditions) | 24 |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Type of protection (System limits of the bus coupler) | Surge protection of the supply voltage |
| Current consumption (System limits of the bus coupler) | max. 583 mA (with 2 A at UBusfor the I/Os and UL= 24 V) |
| Conductor cross section solid max. (Ambient conditions) | 1.5 mm² |
| Conductor cross section solid min. (Ambient conditions) | 0.2 mm² |
| Supply voltage range (System limits of the bus coupler) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Conductor cross section flexible max. (Ambient conditions) | 1.5 mm² |
| Conductor cross section flexible min. (Ambient conditions) | 0.2 mm² |
| Number of local bus devices that can be connected (Interfaces) | max. 63 |
Product Description
AxiolineF, Bus coupler, EtherNet/IP™, RJ45 female, local bus transmission rate:100 MBit/s, protection rating: IP20, including bus base module and AxiolineF connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
