AXL E ETH DI16 M12 6M

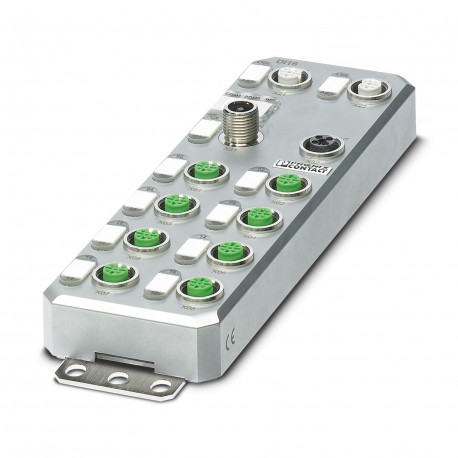

AXL E ETH DI16 M12 6M 2701538 PHOENIX CONTACT Distributed I/O device
$0.00USD
3533 in stock
Key Specifications
GTIN:4046356763868
Orderkey:2701538
Catalog page:Page 196 (C-6-2017)
Depth (Note):38 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356763868 |
| Orderkey | 2701538 |
| Catalog page | Page 196 (C-6-2017) |
| Depth (Note) | 38 mm |
| Packing unit | 1 pc |
| Width (Note) | 60 mm |
| (Interfaces) | DHCP |
| Height (Note) | 185 mm |
| (Digital inputs) | 24 V supply (actuator supply)/FE 500 V AC 50 Hz 1 min. |
| Country of origin | DE (Germany) |
| Input name (Supply) | Digital inputs |
| Custom tariff number | 85176200 |
| Designation (General) | Ethernet |
| (Electrical isolation) | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| Designation (Interfaces) | Modbus/TCP |
| Drill hole spacing (Note) | 198.5 mm |
| No. of channels (General) | 2 |
| Note on dimensions (Note) | The height is 194.5 mm including the mounting plate. With fixing clips pulled out, the height is 212 mm. The depth is 38 mm including the mounting plate (30.5 mm without the mounting plate). |
| Number of inputs (Supply) | 16 |
| Connection method (Supply) | M12 connector, double occupancy |
| Dimensional drawing (Note) | |
| Input filter time (Supply) | < 1000 µs |
| Specification (Interfaces) | Modbus application protocol V1.1b |
| Connection method (General) | M12 fast connection technology |
| Equipment type (Interfaces) | Modbus slave (server) |
| Type of protection (Supply) | Overload protection, short-circuit protection of sensor supply |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Transmission speed (General) | 10/100 Mbps (with auto negotiation) |
| Number of positions (General) | 4 |
| Test section (Digital inputs) | 24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min. |
| Connection technology (Supply) | 4-wire |
| Net weight (Ambient conditions) | 724.3 g |
| Protocols supported (Interfaces) | SNMP v1 |
| Degree of protection (Dimensions) | IP65/IP67 |
| Description of the input (Supply) | EN 61131-2 types 1 and 3 |
| Mounting type (Ambient conditions) | Wall mounting or DIN rail mounting; both with mounting plate. |
| Weight per Piece (excluding packing) | 724.300 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Housing material (Ambient conditions) | Zinc die-cast |
| Nominal input current at UIN (Supply) | typ. 3 mA |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 25; |
| Designation connection point (General) | Copper cable |
| System-specific protocols (Interfaces) | Modbus protocols Modbus/TCP |
| Input voltage range "0" signal (Supply) | 0 V ... 5 V DC |
| Input voltage range "1" signal (Supply) | 11 V DC ... 30 V DC |
| Mechanical tests (Electrical isolation) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Note on the connection method (General) | D-coded |
| Protection class (Electrical isolation) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Designation (System limits of the bus coupler) | Actuators (UA) for additional devices |
| Supply voltage (System limits of the bus coupler) | 24 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C |
| Connection method (System limits of the bus coupler) | M12 connector (T-coded) |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % |
| Current consumption (System limits of the bus coupler) | typ. 3 mA ±15 % (at 24 V DC) |
| Number of positions (System limits of the bus coupler) | 4 |
| Nominal supply voltage range (System limits of the bus coupler) | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
Product Description
Axioline E, Digital input equipment, Ethernet, M12 quick connection technology, Digital inputs: 16, 24 V DC, connection technology: 4 conductors, Metal housing, protection index: IP65/IP67
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
