AXC F XT IB

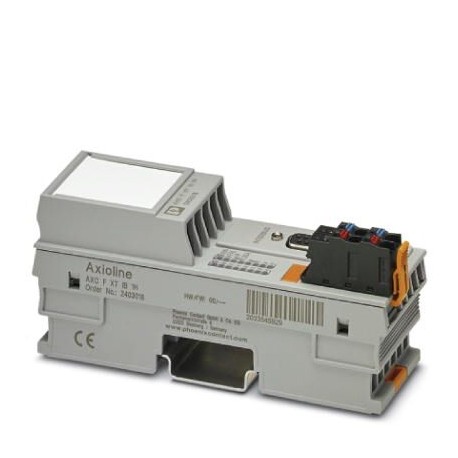

AXC F XT IB 2403018 PHOENIX CONTACT Left-alignable INTERBUS master, for the connection of INTERBUS remote bu..
$0.00USD
4882 in stock
Key Specifications
GTIN:4055626345819
Orderkey:2403018
(Drawings):
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626345819 |
| Orderkey | 2403018 |
| (Drawings) | |
| Packing unit | 1 pc |
| (Dimensions) | -25 °C ... 55 °C (2000 m above sea level ... 3000 m above sea level) |
| Depth (Drawings) | 54 mm |
| Number (General) | 1 |
| Width (Drawings) | 35 mm |
| Country of origin | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC001604 |
| ETIM 6.0 (eCl@ss) | EC001604 |
| ETIM 7.0 (eCl@ss) | EC001604 |
| Height (Drawings) | 126.1 mm |
| (Connection data) | Peripheral fault in INTERBUS Yes |
| (Data interfaces) | Transient protection Suppressor diode |
| Interface (General) | INTERBUS remote bus |
| Custom tariff number | 85389099 |
| (Axioline potentials) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Color (Connection data) | traffic grey A RAL 7042 |
| Connection method (General) | D-SUB-9 female connector |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Net weight (Connection data) | 157.8 g |
| eCl@ss 8.0 (Classifications) | 27242608 |
| eCl@ss 9.0 (Classifications) | 27242608 |
| Designation (Data interfaces) | Supply of the logic voltage UL |
| Note on dimensions (Drawings) | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
| Dimensional drawing (Drawings) | |
| Mounting type (Connection data) | DIN rail mounting |
| Designation (Ambient conditions) | Axioline F connector |
| Supply voltage (Data interfaces) | 24 V DC |
| Degree of protection (Dimensions) | IP20 |
| Protective circuit (Data interfaces) | Polarity reversal protection of the supply voltage Polarity protection diode |
| Weight per Piece (excluding packing) | 180.000 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level (at an operating temperature of up to 55°C, maximum)) |
| Current consumption (Data interfaces) | typ. 110 mA (without IBS OPTOSUB ... FO adapter) |
| Stripping length (Ambient conditions) | 8 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | Push-in connection |
| Diagnostics messages (Connection data) | Bus error in INTERBUS Yes |
| Mechanical tests (Axioline potentials) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Supply voltage range (Data interfaces) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C (up to 2000 m above sea level) |
| Air pressure (storage/transport) (Dimensions) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section AWG max. (Ambient conditions) | 16 |
| Conductor cross section AWG min. (Ambient conditions) | 24 |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Conductor cross section solid max. (Ambient conditions) | 1.5 mm² |
| Conductor cross section solid min. (Ambient conditions) | 0.2 mm² |
| Conductor cross section flexible max. (Ambient conditions) | 1.5 mm² |
| Conductor cross section flexible min. (Ambient conditions) | 0.2 mm² |
Product Description
Left-aligned INTERBUS master for connecting INTERBUS remote bus components to a compatible modular control system from the PLCnext Control series.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dimensional drawing
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
