AXC F XT ETH 1TX

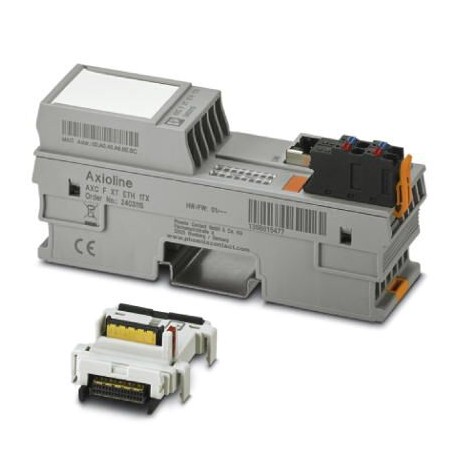

AXC F XT ETH 1TX 2403115 PHOENIX CONTACT Left-alignable Ethernet interface, for connection to a compatible m..
$0.00USD
4077 in stock
Key Specifications
GTIN:4055626257433
Orderkey:2403115
(Drawings):
Catalog page:Page 13 (C-6-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626257433 |
| Orderkey | 2403115 |
| (Drawings) | |
| Catalog page | Page 13 (C-6-2019) |
| Packing unit | 1 pc |
| Depth (Drawings) | 54 mm |
| Number (General) | 1 |
| Width (Drawings) | 35 mm |
| Country of origin | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC001604 |
| ETIM 6.0 (eCl@ss) | EC001604 |
| ETIM 7.0 (eCl@ss) | EC001604 |
| Height (Drawings) | 126.1 mm |
| Interface (General) | Axioline F local bus |
| (Inline potentials) | Transient protection Suppressor diode |
| Custom tariff number | 85176200 |
| (Axioline potentials) | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| Color (Connection data) | traffic grey A RAL 7042 |
| Connection method (General) | Bus base module |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Net weight (Connection data) | 157.8 g |
| Transmission speed (General) | 100 Mbps |
| eCl@ss 6.0 (Classifications) | 27242600 |
| eCl@ss 7.0 (Classifications) | 27242608 |
| eCl@ss 8.0 (Classifications) | 27242608 |
| eCl@ss 9.0 (Classifications) | 27242608 |
| Note on dimensions (Drawings) | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
| Dimensional drawing (Drawings) | |
| Designation (Inline potentials) | Supply of the logic voltage UL |
| Mounting type (Connection data) | DIN rail mounting |
| Designation (Ambient conditions) | Axioline F connector |
| Degree of protection (Dimensions) | IP20 |
| Supply voltage (Inline potentials) | 24 V DC |
| Weight per Piece (excluding packing) | 160.000 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Stripping length (Ambient conditions) | 8 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | Push-in connection |
| Mechanical tests (Axioline potentials) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Protection class (Axioline potentials) | III (IEC 61140, EN 61140, VDE 0140-1) |
| Protective circuit (Inline potentials) | Polarity reversal protection of the supply voltage Polarity protection diode |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Supply voltage range (Data interfaces) | |
| Supply voltage range (Inline potentials) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C (up to 2000 m above sea level) |
| Air pressure (storage/transport) (Dimensions) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Note on weight specifications (Connection data) | with connector and bus base module |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section AWG max. (Ambient conditions) | 16 |
| Conductor cross section AWG min. (Ambient conditions) | 24 |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Conductor cross section solid max. (Ambient conditions) | 1.5 mm² |
| Conductor cross section solid min. (Ambient conditions) | 0.2 mm² |
| Conductor cross section flexible max. (Ambient conditions) | 1.5 mm² |
| Conductor cross section flexible min. (Ambient conditions) | 0.2 mm² |
