AXC 1050 XC

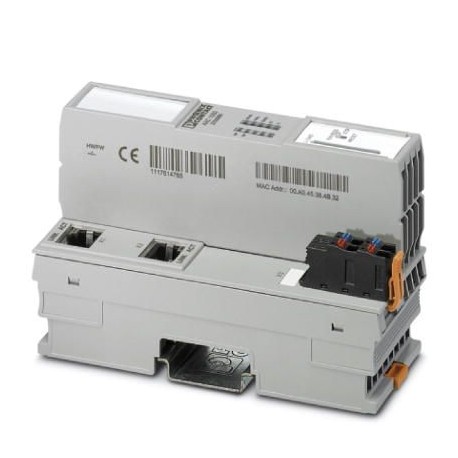

AXC 1050 XC 2701295 PHOENIX CONTACT Controller
$0.00USD
3572 in stock
Key Specifications
GTIN:4055626000091
Orderkey:2701295
Catalog page:Page 76 (C-6-2017)
Depth (Note):74 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626000091 |
| Orderkey | 2701295 |
| Catalog page | Page 76 (C-6-2017) |
| Depth (Note) | 74 mm |
| Packing unit | 1 pc |
| Width (Note) | 45 mm |
| Height (Note) | 125.9 mm |
| (Control system) | PC WORX EXPRESS |
| Country of origin | DE (Germany) |
| (Data interfaces) | min. 4 ms (1st device) |
| Shock (Dimensions) | 30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27 |
| Custom tariff number | 85371091 |
| Shock (General data) | 30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27 |
| (Ambient conditions) | PC WORX EXPRESS |
| Weight (Power supply) | 225.6 g |
| Supply voltage (PROFINET) | 24 V DC |
| Number (Fieldbus function) | 2 |
| Residual ripple (PROFINET) | ± 5 % |
| (IEC 61131 runtime system) | max. 32768 Bit (internal Modbus /TCP client) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Power dissipation (PROFINET) | max. 3 W |
| Immunity to EF (General data) | Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m |
| Interface (Fieldbus function) | Ethernet |
| Mass storage (Control system) | 2 Mbyte |
| Processor (Mechanical design) | Altera Nios II 1x 100 MHz |
| Update rate (Data interfaces) | min. 32 ms (16 devices) |
| Immunity to ESD (General data) | Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge |
| Safety function (Power supply) | No |
| Program memory (Control system) | 2 Mbyte |
| Realtime clock (Control system) | Yes |
| Specification (Data interfaces) | Version 2.2 |
| Supply voltage range (PROFINET) | 19.2 V DC ... 30 V DC |
| Immunity to burst (General data) | Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV |
| Immunity to surge (General data) | Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical), fieldbus cable shield: ±1 kV |
| Shock (operation) (General data) | 10g (Bump endurance test according to DIN EN 60068-2-27) |
| Degree of protection (Dimensions) | IP20 |
| Device function (Data interfaces) | PROFINET controller, PROFINET device |
| Engineering tool (Control system) | PC WORX |
| Diagnostics display (Power supply) | No |
| Vibration (operation) (Dimensions) | 5g |
| Max. current consumption (PROFINET) | 160 mA |
| Controller redundancy (Power supply) | No |
| Interference emission (General data) | Noise emission test according to EN 61000-6-3 Radio interference properties EN 55022 Class B |
| Vibration (operation) (General data) | 5g |
| Weight per Piece (excluding packing) | 225.600 g |
| Air pressure (operation) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Connection method (Fieldbus function) | RJ45 socket |
| Diagnostics tool (Ambient conditions) | DIAG+ |
| Engineering tool (Ambient conditions) | PC WORX |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Transmission speed (Fieldbus function) | 10/100 Mbps |
| Typical current consumption (PROFINET) | 125 mA |
| Configuration tool (Ambient conditions) | Config+ Version 1.01 or later |
| Retentive mass storage (Control system) | 48 kByte (NVRAM) |
| Number of control tasks (Control system) | 8 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C (Observe derating as per user manual) |
| Electromagnetic compatibility (General data) | Conformance with EMC Directive 2014/30/EU |
| Vibration (storage/transport) (General data) | 5g |
| Air pressure (storage/transport) (Dimensions) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Amount of process data (IEC 61131 runtime system) | max. 4096 Bit (Axioline F local bus (input)) |
| Immunity to conducted interference (General data) | Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A; Test voltage 10 V |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Programming languages supported (Ambient conditions) | Programming in acc. with IEC 61131-3 |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Number of supported devices (IEC 61131 runtime system) | max. 63 (per station) |
| Number of local bus devices that can be connected (IEC 61131 runtime system) | max. 63 (observe current consumption) |
Product Description
Axiocontrol for the Axioline direct I/O control system. With 2 Ethernet interfaces, extended temperature range and programmability in accordance with IEC 61131-3. Complete with connector and labeling
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
