AVTA 25

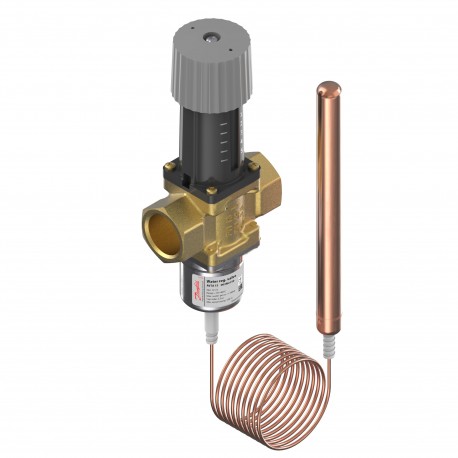

AVTA 25 003N0032 DANFOSS CONTROLES INDUSTRIALES AVTA 25 Water regulating valve 25-65°C M/10
$495.02USD
56 in stock
Key Specifications
EAN ():5702423014378
Type ():AVTA 25
Media ():Neutral media
Volume ():4.142 Liter
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423014378 |
| Type () | AVTA 25 |
| Media () | Neutral media |
| Volume () | 4.142 Liter |
| Approval () | EACLLC CDC TYSKPEDRoHSRoHS China |
| Armoring () | Yes |
| Net weight () | 1.565 Kg |
| Charge type () | Universal |
| Serviceable () | Water valve spare parts |
| Gross weight () | 1.906 Kg |
| Body material () | Brass |
| Product group () | Water regulating valves |
| Packing format () | Multi pack |
| Connection type () | G |
| Kv value [m³/h] () | 5.5 m³/h |
| SCIP dossier no. () | d0092edb-0ce7-409a-9808-fda08274cc60 |
| Orifice size [mm] () | 25 mm |
| Cv value [gal/min] () | 6.4 gal/min |
| EU RoHS compliance () | No - out of scope |
| Connection standard () | ISO 228-1 |
| Product accessories () | Generic accessoriesWater valves accessories |
| Connection size [in] () | 1 |
| Opening configuration () | Opens on rising sensor temp. |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Thermo. operated water valve |
| Capillary tube gland type () | G |
| Max. test pressure [psig] () | 362.6 psig |
| Sensor size (Ø x L) [in] () | 23/32 x 8 1/4 in |
| Sensor size (Ø x L) [mm] () | 18 x 210 mm |
| Capillary tube length [mm] () | 2000 mm |
| Orifice size fraction [in] () | 1 in |
| Max. Working Pressure [bar] () | 16 bar |
| Max. test pressure [bar] Pe () | 25 bar |
| Quantity per packing format () | 10 pc |
| Capillary tube gland Int/Ext () | Internal |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 232 psig |
| Capillary tube gland standard () | ISO 228-1 |
| Max. pressure on sensor [bar] () | 25 bar |
| Max. sensor temperature [°C] () | 90 °C |
| Max. sensor temperature [°F] () | 194 °F |
| Temperature range [°C] [max] () | 65 °C |
| Temperature range [°C] [min] () | 25 °C |
| Temperature range [°F] [max] () | 149 °F |
| Temperature range [°F] [min] () | 77 °F |
| Cap. tube length fraction [in] () | 78 3/4 in |
| Capillary tube gland size [in] () | 3/4 |
| Max. pressure on sensor [psig] () | 362.6 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 10 bar |
| Differential pressure [bar] [min] () | 0 bar |
| Differential pressure [psi] [max] () | 145 psi |
| Differential pressure [psi] [min] () | 0 psi |
| Medium temperature range [°C] [max] () | 130 °C |
| Medium temperature range [°C] [min] () | -25 °C |
| Medium temperature range [°F] [max] () | 266 °F |
| Medium temperature range [°F] [min] () | -13 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Thermo. operated water valve, AVTA 25, G, 1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Body material: Brass, Opening configuration: Opens on rising sensor temp., Charge type: Universal
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
