ATP-UTTB 2,5/4

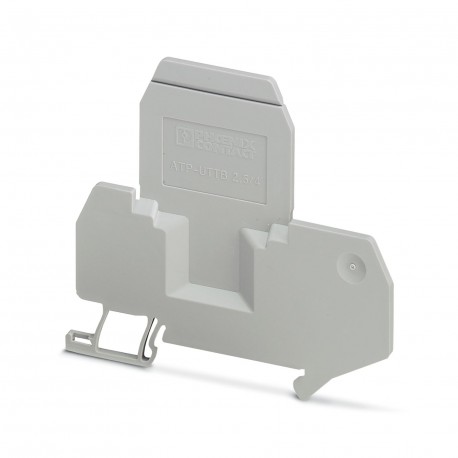

ATP-UTTB 2,5/4 3047316 PHOENIX CONTACT Partition plate
$0.95USD
10568 in stock
Key Specifications
GTIN:4017918997281
Orderkey:3047316
Catalog page:Page 46 (C-3-2013)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918997281 |
| Orderkey | 3047316 |
| Catalog page | Page 46 (C-3-2013) |
| Packing unit | 50 pc |
| Width (General) | 2.2 mm |
| Height (General) | 70 mm |
| Length (General) | 74.3 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85472000 |
| Minimum order quantity | 50 pc |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Key Commercial Data) | PA |
| Weight per Piece (excluding packing) | 6.650 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| NF F16-101, NF F10-102 Class F (Dimensions) | 2 |
| NF F16-101, NF F10-102 Class I (Dimensions) | 2 |
| Oxygen index (DIN EN ISO 4589-2) (Dimensions) | >32 % |
| Flammability rating according to UL 94 (General) | V0 |
| Flame test method (DIN EN 60695-11-10) (Dimensions) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Dimensions) | passed |
| Surface flammability NFPA 130 (ASTM E 162) (Dimensions) | passed |
| Static insulating material application in cold (Dimensions) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Dimensions) | Test passed |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Dimensions) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Dimensions) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Dimensions) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Dimensions) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) (Dimensions) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Dimensions) | 125 °C |
Product Description
Spacer plate, length: 74.3 mm, width: 2.2 mm, height: 70 mm, colour: grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
