AT6/BP-1H

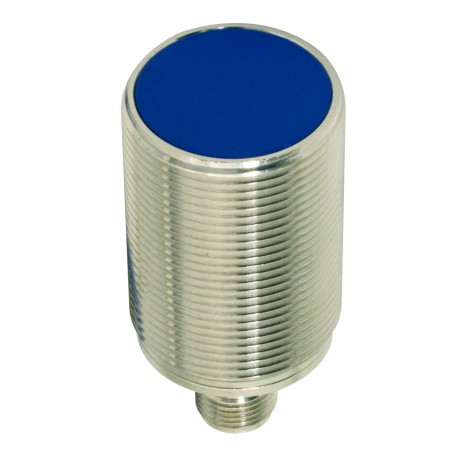

AT6/BP-1H MICRO DETECTORS Inductive sensor M30 shielded short housing NO+NC/PNP plug M12
$0.00USD
4510 in stock
Key Specifications
Weight:80g
Mounting:Shielded
Approvals:CEcULus
Dimensions:M30 x 1,5 / L = 60mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 80g |
| Mounting | Shielded |
| Approvals | CEcULus |
| Dimensions | M30 x 1,5 / L = 60mm |
| Hysteresis | 1 … 20% |
| Connections | M12 Plug |
| Output type | PNP |
| Load current | ≤ 400mA |
| LED indicators | Yellow LED output state |
| Leakage current | ≤ 10μA |
| Output Function | NO + NC |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 30x30mm FE360 |
| Housing Material | Nickel-plated brass |
| Correction Factor | copper: 0,41 / aluminium: 0,47 / brass: 0,52 / stainless steel: 0,84 |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 50Nm |
| Max ripple content | ≤10% |
| Operanting distance | 0…8,1mm |
| Output voltage drop | ≤ 1V @400mA |
| Switching frequency | 200Hz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PBT |
| Degree of protection | IP 67 (EN60529) |
| Supplied Accessories | 2 nuts M30x1,5 |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤ 20mA |
| Nominal sensing distance | 10mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Time delay before availability | 100ms |
| Protection against inductive loads | Yes |
Product Description
AT6/BP-1H Inductive sensor M30 shielded short housing NO+NC/PNPconn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
