ASTSZ162

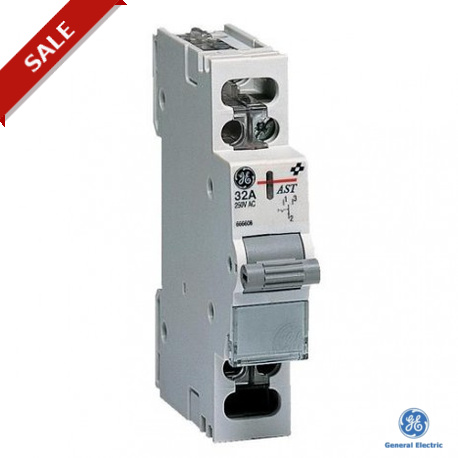

ASTSZ162 666607 GENERAL ELECTRIC ASTER switch with zero posiion 16A 2CO 240Vac
$0.00USD
3979 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000216
ETIM 6.0 (DIMENSIONS):EC000216
Weight (SPECIFICATIONS):0.083 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000216 |
| ETIM 6.0 (DIMENSIONS) | EC000216 |
| Weight (SPECIFICATIONS) | 0.083 kg |
| (ORDER/DELIVERY STATUS) | IP20 |
| Screws (ORDER/DELIVERY STATUS) | Pozidriv 1 |
| Series (ORDER/DELIVERY STATUS) | Changeover switch with zero position |
| Approvals (ORDER/DELIVERY STATUS) | VDE, CEBEC, KEMA, CE |
| Standards (ORDER/DELIVERY STATUS) | EN 606669-1, EN 60669, VDE 0632 part 1 |
| Standard packing (ORDER/DELIVERY STATUS) | 12 |
| Number of modules (ORDER/DELIVERY STATUS) | 1 |
| Nominal current In (ORDER/DELIVERY STATUS) | 16A/240Vac |
| Contact combination (ORDER/DELIVERY STATUS) | 2CO |
| Switching possibilty (V) (ORDER/DELIVERY STATUS) | 16A/240V |
| Terminal capacity max (mm²) (ORDER/DELIVERY STATUS) | 1 x 10 mm² |
| Terminal capacity min (mm²) (ORDER/DELIVERY STATUS) | 1 x 1.5 mm² |
| Usable as mains disconnect switch (ORDER/DELIVERY STATUS) | No |
| Nominal voltage single pole devices (ORDER/DELIVERY STATUS) | 240Vac |
| Short-circuit resistance with upfront fuses (ORDER/DELIVERY STATUS) | 4.5kA (nom) |
| Short-circuit resistance without upfront fuses (ORDER/DELIVERY STATUS) | 3kA (nom) |
| Mechanical service life (complete on-off-cycle) (ORDER/DELIVERY STATUS) | >20000 |
| Nominal breaking capacity at 415Vac, cos (phi) = 0,95 (ORDER/DELIVERY STATUS) | 1.25 xIn |
Product Description
ASTSZ162
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
