ASTP1611

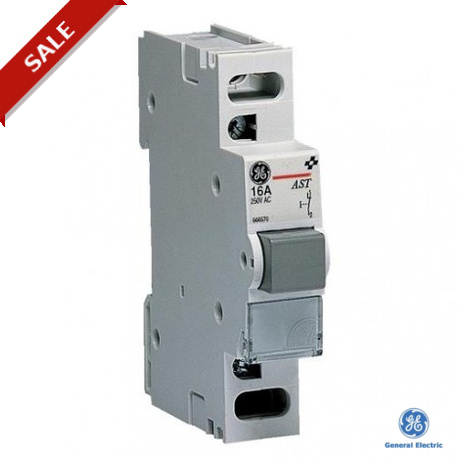

ASTP1611 666572 GENERAL ELECTRIC ASTER push-button 16A 1NO 1NC 250Vac
$0.00USD
3567 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC001546
ETIM 6.0 (DIMENSIONS):EC001546
Weight (SPECIFICATIONS):0.063 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC001546 |
| ETIM 6.0 (DIMENSIONS) | EC001546 |
| Weight (SPECIFICATIONS) | 0.063 kg |
| Range (ORDER/DELIVERY STATUS) | Push-Buttons |
| Family (ORDER/DELIVERY STATUS) | Push-button - Aster |
| Screws (ORDER/DELIVERY STATUS) | Pozidriv 1 |
| Approvals (ORDER/DELIVERY STATUS) | CEBEC, VDE, KEMA, CE |
| Protection (ORDER/DELIVERY STATUS) | IP20 |
| Nominal current (ORDER/DELIVERY STATUS) | 16A/240Vac |
| Standard packing (ORDER/DELIVERY STATUS) | 12 |
| Number of modules (ORDER/DELIVERY STATUS) | 1 |
| Contact combination (ORDER/DELIVERY STATUS) | 1NO 1NC |
| Terminal capacity max (mm²) (ORDER/DELIVERY STATUS) | 1 x 10 mm² |
| Terminal capacity min (mm²) (ORDER/DELIVERY STATUS) | 1 x 1.5 mm² |
| Usable as mains disconnect switch (ORDER/DELIVERY STATUS) | No |
| Nominal voltage single pole devices (ORDER/DELIVERY STATUS) | 240Vac |
| Short-circuit withstand with back-up fuses (ORDER/DELIVERY STATUS) | 4.5kA (nom) |
| Short-circuit withstand without back-up fuses (ORDER/DELIVERY STATUS) | 3kA (nom) |
| Mechanical service life (complete on-off-cycle) (ORDER/DELIVERY STATUS) | >20000 |
Product Description
ASTP1611
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
