ASTM4040

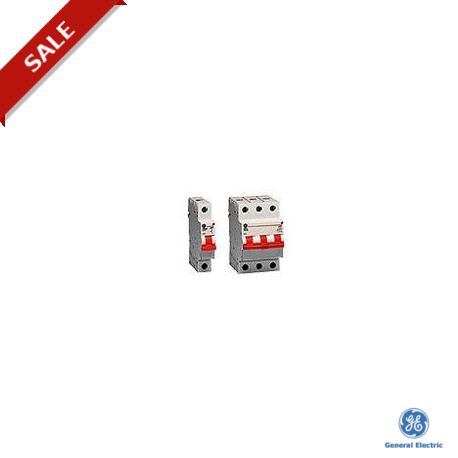

ASTM4040 666617 GENERAL ELECTRIC ASTER main disconnect switch 40A 4NO 415Vac
$0.00USD
4521 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000216
ETIM 6.0 (DIMENSIONS):EC000216
Weight (SPECIFICATIONS):0.351 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000216 |
| ETIM 6.0 (DIMENSIONS) | EC000216 |
| Weight (SPECIFICATIONS) | 0.351 kg |
| (ORDER/DELIVERY STATUS) | IP20 |
| Screws (ORDER/DELIVERY STATUS) | Pozidriv 2 |
| Series (ORDER/DELIVERY STATUS) | Mains disconnect switch |
| Approvals (ORDER/DELIVERY STATUS) | VDE, CEBEC, KEMA, CE |
| Standards (ORDER/DELIVERY STATUS) | EN 60947-3, NBN EN 60947-3, VDE 0632 part 101 |
| Standard packing (ORDER/DELIVERY STATUS) | 3 |
| Number of modules (ORDER/DELIVERY STATUS) | 4 |
| Nominal current In (ORDER/DELIVERY STATUS) | 40A/415Vac |
| Contact combination (ORDER/DELIVERY STATUS) | 4NO |
| Switching possibilty (V) (ORDER/DELIVERY STATUS) | 40A/415V |
| Terminal capacity max (mm²) (ORDER/DELIVERY STATUS) | 1 x 50 mm² |
| Terminal capacity min (mm²) (ORDER/DELIVERY STATUS) | 1 x 6 mm² |
| Usable as mains disconnect switch (ORDER/DELIVERY STATUS) | Yes |
| Nominal voltage single pole devices (ORDER/DELIVERY STATUS) | 240Vac |
| Short-circuit resistance with upfront fuses (ORDER/DELIVERY STATUS) | 16kA (nom) |
| Short-circuit resistance without upfront fuses (ORDER/DELIVERY STATUS) | 7kA (summit) |
| Max allowed current during less than 1 sec (kA) (ORDER/DELIVERY STATUS) | 2 kA |
| Mechanical service life (complete on-off-cycle) (ORDER/DELIVERY STATUS) | >20000 |
| Nominal breaking capacity at 415Vac, cos (phi) = 0,65 (ORDER/DELIVERY STATUS) | 3xInom |
