ASFN80372

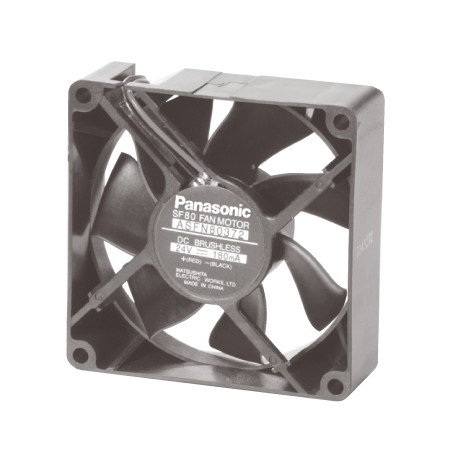

ASFN80372 PANASONIC DC fan motor, 80x80x25mm, ball bearing type standard speed 24V DC
$0.00USD
4040 in stock
Key Specifications
Item:Specifications
Noise:32.5 dB(A)
Weight:80 g
Details:Standard speed
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Noise | 32.5 dB(A) |
| Weight | 80 g |
| Details | Standard speed |
| Product | DC Fan Motor 80 x 25t |
| Input power | 4.32 W max/3.36 W AVE |
| Part Number | ASFN80372 |
| Fan blockage | No coil burnout even after blockage of 72 hrs. at nominal voltage. |
| Product name | DC Fan Motor 80 x 25t(ASFN8) |
| Expected life | 90% survival rate at 60,000 hrs. (When rotation frequency drops 30% of initial value when run at nominal voltage under 25degrees 77degrees Fahrenheit , room humidity.) |
| Max. air flow | 1.09 m3/min |
| Rated current | 180 mA max/140 mA AVE |
| Rated voltage | 24 V |
| Materials used | Frame: plasticPropeller: plasticBearings: ball bearingsLead wires: UL1007 and AWG24 |
| Product Number | ASFN80372 |
| Rotation speed | 2,950 r/min |
| Temperature rise | Coil surface: Max. 50degrees 122degrees Fahrenheit (Nominal voltage, by resistive method)External surface: Max. 20degrees 68degrees Fahrenheit (Nominal voltage, by thermocouple method) |
| Breakdown voltage | 500 V AC for 1 min. (between lead wire and external housing) |
| Ambient temperature | -10degrees to +60degrees +14degrees Fahrenheit to +140degrees Fahrenheit |
| Max. static pressure | 36.6 Pa |
| Insulation resistance | Min. 10 MOhm (at 500 V DC) |
| Lead wire tensile strength | 9.8 N, single wires did not break at 15 seconds |
| Vibration resistance:Frequency | 10 to 55Hz |
| Reverse polarity power connection | No damage even after reverse polarity connection for short time at nominal voltage. |
| Vibration resistance:Applied time | 10 min. in each direction |
| Humidity resistance test condition | 40degrees 104degrees Fahrenheit, 95%RH, 500 hrs |
| Vibration resistance:Applied direction | X, Y and Z directions |
| Vibration resistance:Double amplitude width | 0.75 mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
