In Stock Hot Product
APM 21/25

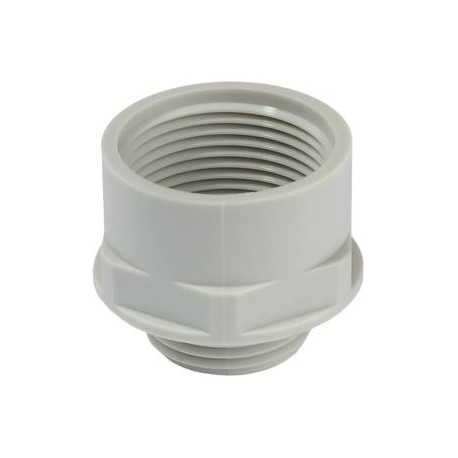

APM 21/25 10063664 WISKA Light grey PA converter outer thread PG.21, interior M25
$0.00USD
3052 in stock
Key Specifications
Form (Features):A
Type (Features):APM 21/25
Material (Features):Polyamide, fibre reinforced
Lead inner (Features):1,5
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form (Features) | A |
| Type (Features) | APM 21/25 |
| Material (Features) | Polyamide, fibre reinforced |
| Lead inner (Features) | 1,5 |
| Key width SW (Features) | 33 mm |
| Packing unit (Features) | 10 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 650 °C |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 30 mm |
| Ø inner thread (Features) | 25 |
| Ø outer thread (Features) | 21 |
| Thread type inner (Features) | M |
| Thread type outer (Features) | PG |
| Order no. RAL 7035 (Features) | 10063664 |
| Collar diameter (E) (Features) | 36 mm |
| ETIM-Classification (Features) | EC000938 |
| Length internal thread (Features) | 15,5 mm |
| Length screw-in thread L (Features) | 12 mm |
Product Description
Adaptor polyamide, RAL 7035, Pg21 / M25
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
