In Stock Hot Product
APC-12E-700

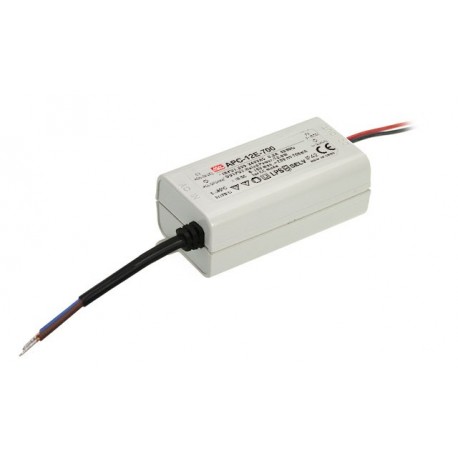

APC-12E-700 MEANWELL AC-DC Single output LED driver Constant Current (CC), Input 180-264VAC, Output 0.7A / 9..
$0.00USD
3147 in stock
Key Specifications
Name:APC-12E-700
State:High Turnover
Stock:Yes
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | APC-12E-700 |
| State | High Turnover |
| Stock | Yes |
| Format | Box |
| Series | APC-12E |
| Approvals | CE, ENEC |
| Power (W) | 12,60 |
| Subformato | IP42 |
| Width (mm) | 40.00 |
| Height (mm) | 29.00 |
| AC input Max | 264,00 |
| AC input Min | 180,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 12.6 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 77.00 |
| Long Description | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP42.Input range180-264vac47-63Hz.Output in constant current700mA.Range of output voltage with current mode constant9 to 18vdcaccording to demand load.Power:12,6 W.Efficiency typical:79%.Input class II without grounding.Operating temperature range of caseTcfrom-30ºCup+70ºC.Dimensions (Length x Width x Height):77 x 40 x 29mm.2 years of warranty.Manufacturer: MEAN WELL.The series APC and APC-E are LED Drivers designed to work directly with LEDs (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. With plastic housing, designed for applications of LED-lighting and signalling mobile.Have a low cost and a high reliability. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
| Output current mA | Seven hundred |
| Intensity of Minimum Output (mA) | 700,00 |
| Intensity of Output Maximum (mA) | 700,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver.
Product Documents
