In Stock Hot Product
ANUJ3000

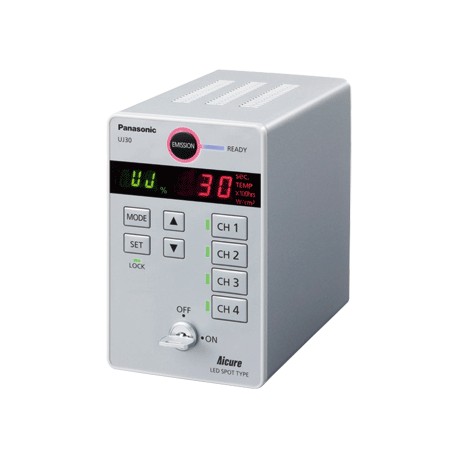

ANUJ3000 PANASONIC Controller UJ30
$0.00USD
3047 in stock
Key Specifications
Item:Specifications
Weight:Approx. 940g (excluding the AC adapter)
Details:Standard model
Display:7-segment display
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Weight | Approx. 940g (excluding the AC adapter) |
| Details | Standard model |
| Display | 7-segment display |
| Product | UJ30 Controller |
| Accessories | AC adapter and key |
| Part Number | ANUJ3000 |
| Product name | Aicure UJ30/35 LED Spot Type UV Curing Systems |
| Cooling method | Natural cooling (without a fan) |
| Product Number | ANUJ3000 |
| Type switching | None (1 type) |
| UV irradiation | One patten in simple modeThe heads are either collectively orindividually controlled. |
| Connectable heads | 1to 4 heads |
| Operating voltage | Supplied AC adapter: 100 to 240 V AC (plus or minus10%),50/60 Hz, 60 VA (at 100 V AC) |
| Setting/Operation | Setting by the operation switches and power-on/off by a key switch |
| Connectable UV sensor | Not compatible |
| External control:Method | Parallel I/O |
| Intensity/irradiation control | Digital intensity and irradiation control manual or timer controlManual/timer control (0.1 to 99.9 sec., 100 to 999 sec.)Auto-tuning function using the UV sensor (for UJ35 only)Specifications of UV sensor: Temperature characteristic: ±5 % F.S.(+5 to +35℃+41 to +95℉)/ Repeat accuracy: ±1 % (+25℃+77℉)] |
| External control:External input | Individual irradiation/stop input, interlock, full-irradiation and input |
| External control:External output | READY signal, error signal, warning output,BUSY output (each head separately), and +5 V output (for indicators) |
| Storage ambient temperature / Storage ambient humidity | –10 to +60℃+14 to +140℉/ 30 to 85 % RH (No dew condensation or icing allowed) |
| Operating ambient temperature / Operating ambient humidity | 0 to +35℃+32 to +95℉/ 30 to 85 % RH (No dew condensation allowed) |
