ANT-DIR-868-01

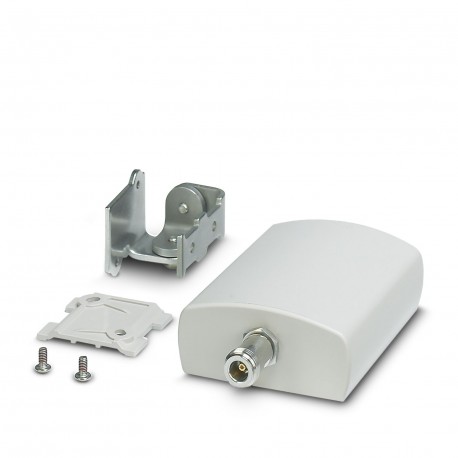

ANT-DIR-868-01 2702137 PHOENIX CONTACT Antenna
$0.00USD
3895 in stock
Key Specifications
:EN 60079-11
Gain:3.5 dBi
Note:Please follow the special installation instructions in the documentation!
Width:80 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EN 60079-11 | |
| Gain | 3.5 dBi |
| Note | Please follow the special installation instructions in the documentation! |
| Width | 80 mm |
| Height | 100 mm |
| Length | 35 mm |
| Impedance | 50 Ω |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Certificate | CE-compliant |
| Polarization | Circular clockwise |
| Product type | Antenna |
| Assembly note | Outdoors and indoors |
| Mounting type | Wall mounting |
| Wind velocity | 220 km/h |
| Capacitance Ci | negligible |
| Frequency band | 868 MHz |
| Identification | II 1G Ex ia IIC T6 Ga |
| Input power Pi | ≤ 1 W (30 dB) |
| Frequency range | 868 MHz ... 870 MHz |
| Impact strength | IK06 |
| Article revision | 00 |
| Input current Ii | 600 mA |
| Input voltage Ui | 30 V |
| Material (Radom) | Lexan EXL 9330 |
| Maximum capacity | 10.00 W |
| Other resistance | salt water resistant |
| Outside diameter | 25 mm ... 85 mm (Mast) |
| Connection method | N (female) |
| Material (Holder) | Stainless steel V2A |
| Scope of delivery | included mounting bracket and mast clamps |
| Shock (operation) | In accordance with EN 50125-3, positioning profile: “away from the rails” |
| Vertical beamwidth | 90 ° |
| Dimensional drawing | |
| Note on application | Only for industrial use |
| Degree of protection | IP67 |
| Horizontal beamwidth | 135 ° |
| Material (Mast clamp) | Stainless steel V2A |
| Vibration (operation) | In accordance with EN 50125-3, positioning profile: “away from the rails” |
| Standards/specifications | EN 60079-0 |
| Radiation characteristics | Directional |
| Max. internal inductance Li | negligible |
| Ambient temperature (operation) | -40 °C ... 75 °C |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Product Description
Directional antenna for pole or wall mounting, frequency band: 868 MHz, gain: 3.5 dBi, circular polarization, protection index: IP67, shock resistant: IK06, seawater resistant, connection:N (female),
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
