ANE5-P16

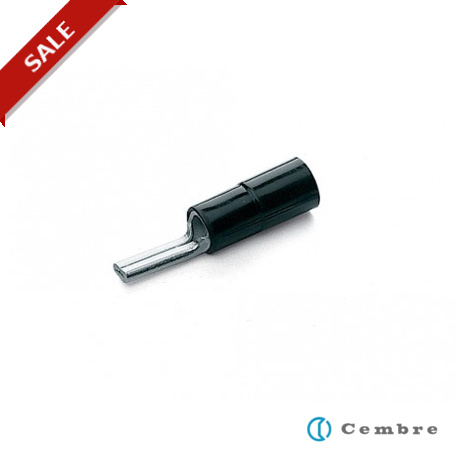

ANE5-P16 2418560 CEMBRE ANE5-P16 INSULATED TERMINAL
$0.00USD
3790 in stock
Key Specifications
Material (Body) (Technical characteristicsOther characteristics):ETP Copper elettrolyticaly tinned
Material (Partially reinforced) (Technical characteristicsOther characteristics):Polyamide PA6.6
Max operating temperature range (Technical characteristicsOther characteristics):115 °C
Min operating temperature range (Technical characteristicsOther characteristics):-20 °C
Supplier Information
CEMBRE
Products: 12084
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Material (Body) (Technical characteristicsOther characteristics) | ETP Copper elettrolyticaly tinned |
| Material (Partially reinforced) (Technical characteristicsOther characteristics) | Polyamide PA6.6 |
| Max operating temperature range (Technical characteristicsOther characteristics) | 115 °C |
| Min operating temperature range (Technical characteristicsOther characteristics) | -20 °C |
| Max operating temperature range (surge) (Technical characteristicsOther characteristics) | 130 °C |
Product Description
PRE-INSULATED TERMINAL SECTION 25 MM² TIP L= 20.3 MM BLACK
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
ANE-P series terminals are made from electrolytic copper, rolled, tin plated and brazed. The interior of the PA6.6 insulated sleeve is funnel shaped so as to ensure complete and easy introduction of the conductor strands. In order to achieve the best electrical and mechanical performance it is suggested that they are crimped using dies and tools specifically developed for this purpose by Cembre.
